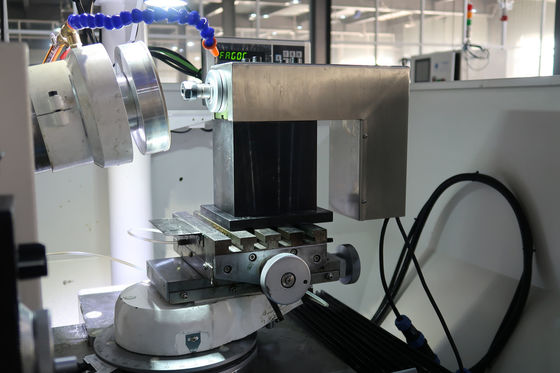

2 Axis PCBN PCD Grinding Machine Acurracy Angle For Hard Metal
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Brand | CHN-TOP | Model No. | ZT-120 |
|---|---|---|---|
| Linear | SCHNEEBERGER | Pneumatic System | JAPAN SMC Brand |
| Application | PCD PCBN Diamond Tools Grinding | Market | Germany, Turkey , Italy, Americal, Poland, Mexico, India |
| High Light | PCBN PCD Grinding Machine,2 axis PCD Grinding Machine,2 axis cnc grinding machine |
||
You can tick the products you need and communicate with us in the message board.
| Radius Tip | 0-70mm | |
|---|---|---|
| Grinding pressure | 0-450N Adjustable | |
| Spindle speed | 0-4200RPM adjustable | |
| Grinding wheel size | 150*40*40mm (D*H*T) | |
| Grinding wheel oscillation frequency | 0-45/min adjustable | |
| Grinding wheel oscillation distance | 0-70mm adjustable | |
| Grinding wheel height adjustment | 140mm | |
| Grinding wheel stroke range | 400mm | |
| Grinding wheel inclination | -13°-+24° | |
| Cross table swiveling angle | 0-270° | |
| Size of cross table | 210*160mm with 4 T slots | |
| Workable infeed hand wheel division | 0.001mm/ 1 division | |
| Spindle Power | 2.2KW | |
| Dimension | 1850*2200*1650mm( L*H*W) | |
| Net weight | 2000kgs |
Product Description
ROTARY TOOLS PCD GRINDING MACHINE WITH PRECESION LINEAR SLIDE ACURRACY ANGLE ENCODER SUITABLE FOR BORNING CUTTER
ZT-120 PCD PCBN grinding machine is a precision tools' grinding machine which can grind the blade and coordinated with a veriety of optional accessories, it can grind milling cutter, turing cutter, and driller, borning cutter also.Here are the key accessories:
- Felexable infeed and out feed axis
- Can add some rotary holders and suitable for endmiller, round tools also
- Similar specification with Ewag RS15, FARM500D
- All of the machine cast body is over 6 years natural ageing
- HD CCD camera with LCD monitor
- FAGOR angle encoder
- World wide after sales service team, online and indoor installation and training service
Features
- Machine body and all casts is more than 18 months natural ageing
- SCHNEEBERGER heavy duty &precision linear slide guide for its accuracy and life
- Worktable pivots up to 270 degrees with adjustable positioning stops and quickly locks
- The whole pneumatic system use JAPAN SMC brand, to get rapid feed and infeed
- Linear grating and angle encoder of this model is FAGOR, make sure the precision indication.
- C.C.D Camera with LCD monitor and precision scale for easy set up& inspection during grinding.
- LCD monitor scope with zoom system for adjustable from 7- 45 magnification even 0.05 radius can be grinding and inspection.
| CHN-TOP Grinding Machine Series Model | Type |
| ZT-90 | Manual |
| ZT-90A | Semi-automatic 2 axis CNC |
| ZT-120 | Manual |
| ZT-120R | Semi-automatic , special for rotary tools |
| ZT-180 | Full automatic |
TECHNICAL PARAMETERS
|
Model |
ZT-120 |
|---|---|
| Tip Radius | 0-100mm |
| Grinding Pressure | 0-450N adjustable |
| Spindle Speed | 0-4200RPM adjustable |
| Grinding wheel size | 150*40*40mm (D*H*T) |
| Grinding wheel oscillation frequency | 0-45/min adjustable |
| Grinding wheel oscillation distance |
0-70mm adjustable |
| Grinding wheel height adjustment | 140mm |
| Grinding wheel stroke range | 400mm |
| Grinding wheel inclination | -13°-+24° |
| Cross table swiveling angle | 0-270° |
| Size of cross table | 210*160mm with 4 T slots |
| Workable infeed hand wheel division | 0.001mm/ 1 division |
| Spindle Power | 2.2KW |
| Dimension | 1850*2200*1650mm( L*H*W) |
Grinding Samples
Optional Accessories
Factory View
CHN-TOP is the company offer comprehensive solutions for diamond tools making
Machines: PCD/PCBN diamond grinding machine, Vacuum brazing machine, laser cutting machine,
chip breaker machines, laser engraving machine and polishing machines
Material: World famous PCD/ PCBN blanks , such as ILJIN, Element six, Hypersion, Adico, CHN-TOP
CTSTC, SF with competive price
Machining service: Cutting for segements, brazing service for MD/PDC cutter, PCBN tools,
Notching service for tools, chip breaker machining service and grinding service
FAQ
Q: Are you trading company or manufacturer ?
A: We are manufactory for PCD,CBN diamond tools equipments and service, we have our own R&D
team and production workshop. We can develop our customers' unique products according to their needs.
Q: How long is your delivery time?
A: Generally it is 2-3 days for CNC diamonds tools machining, and 45-60 days for machines.
Q: How about your after-sales system?
A: We have a comprehensive after-sales system, which can provide one-on-one online video service
according to the needs of customers, and one-on-one service to solve customers' worries.
Q: How about your delivery date for PCD/PCBN blank?
A: 1), PCD/PCBN Blank, we have signed a Chinese agency agreement with international big brands,
customers do not need to worry about genuine and delivery problems;
2), We can provide a wide range of products with PCD/ PCBN Blank, customers can choose goods according
to different needs, we also have self-developed domestic PCD with high quality, the price is very competitive.
Q: How about the cutting thickness and width of Laser cutting machine?
A: 1), Cutting thickness, single-sided cutting maximum thickness of 4-5mm, double-sided cutting maximum
thickness of 8 10mm.
2), Slit width: 0.05-0.15mm, accuracy can reach 0.01mm.
