2.2KW Manual CNC Grinding Machine High Reliability CE Approval

Place of Origin CHINA,HUNAN
Brand Name CHN-TOP
Certification CE
Model Number ZT-120
Minimum Order Quantity 1SETS
Price 1.00
Packaging Details Wooden packing
Delivery Time 20-60 working days
Payment Terms L/C, D/P, T/T
Supply Ability 30 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Brand CHN-TOP Machine Body Over 5 Years Natural Age Cast Iron
Application PCD Tools PCBN Tools, Carbide Tools Type Manual
Model No. ZT-120
High Light

CE cnc grinding machine

,

2.2KW cnc grinding machine

,

2.2KW diamond grinding machine

You can tick the products you need and communicate with us in the message board.
Radius Tip 0-70mm
Grinding pressure 0-450N Adjustable
Spindle speed 0-4200RPM adjustable
Grinding wheel size 150*40*40mm (D*H*T)
Grinding wheel oscillation frequency 0-45/min adjustable
Grinding wheel oscillation distance 0-70mm adjustable
Grinding wheel height adjustment 140mm
Grinding wheel stroke range 400mm
Grinding wheel inclination -13°-+24°
Cross table swiveling angle 0-270°
Size of cross table 210*160mm with 4 T slots
Workable infeed hand wheel division 0.001mm/ 1 division
Spindle Power 2.2KW
Dimension 1850*2200*1650mm( L*H*W)
Net weight 2000kgs
Leave a Message
Radius Tip 0-70mm
Product Description

PCD GRINDING MACHINE FOR DIAMOND TOOL WITH CROSS TABLE PRECISION LINEAR SLIDE AND VERY ACCURACY ANGLE ENCODER

The ZT-120 is a precision tools grinding machine which can grind the blade and  coordinated with a variety of optional accessories, it can grind milling cutter, , boring cutter, and driller with very efficient work.

ZT-120 Grinding machine is similar specification with Ewag RS15, FARMAN 500D , and it can add a rotary holder which suitable for rotary tools, endmills grinding.



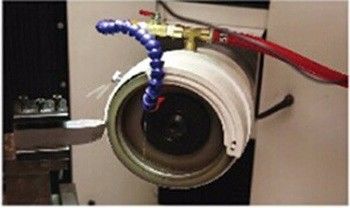

2.2KW Manual CNC Grinding Machine High Reliability CE Approval 0

Features

  • Machine body and all casts is more than 18 months natural ageing
  • SCHNEEBERGER heavy duty &precision linear slide guide for its accuracy and life
  • Worktable pivots up to 270 degrees with adjustable positioning stops and quickly locks
  • The whole pneumatic system use JAPAN SMC brand, to get rapid feed and infeed
  • Linear grating and angle encoder of this model is FAGOR, make sure the precision indication.
  • C.C.D Camera with LCD monitor and precision scale for easy set up& inspection during grinding.

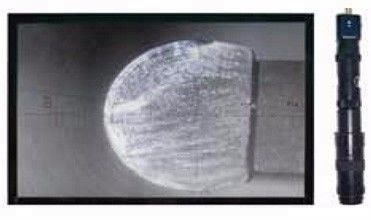

  • LCD monitor scope with zoom system for adjustable from 7- 45 magnification even 0.05 radius can be grinding and inspection.













CHN-TOP Grinding Machine Series Model Type
ZT-90 Manual
ZT-90A Semi-automatic 2 axis CNC
ZT-120 Manual
ZT-120R Semi-automatic , special for rotary tools
ZT-180 Full automatic




TECHNICAL PARAMETERS

Model

ZT-120
Tip Radius 0-100mm
Grinding Pressure 0-450N adjustable
Spindle Speed 0-4200RPM adjustable
Grinding wheel size 150*40*40mm (D*H*T)
Grinding wheel oscillation frequency 0-45/min adjustable
Grinding wheel oscillation distance

 0-70mm adjustable

Grinding wheel height adjustment 140mm
Grinding wheel stroke range 400mm
Grinding wheel inclination -13°-+24°
Cross table swiveling angle 0-270°
Size of cross table 210*160mm with 4 T slots
Workable infeed hand wheel division 0.001mm/ 1 division
Spindle Power 2.2KW
Dimension 1850*2200*1650mm( L*H*W)
