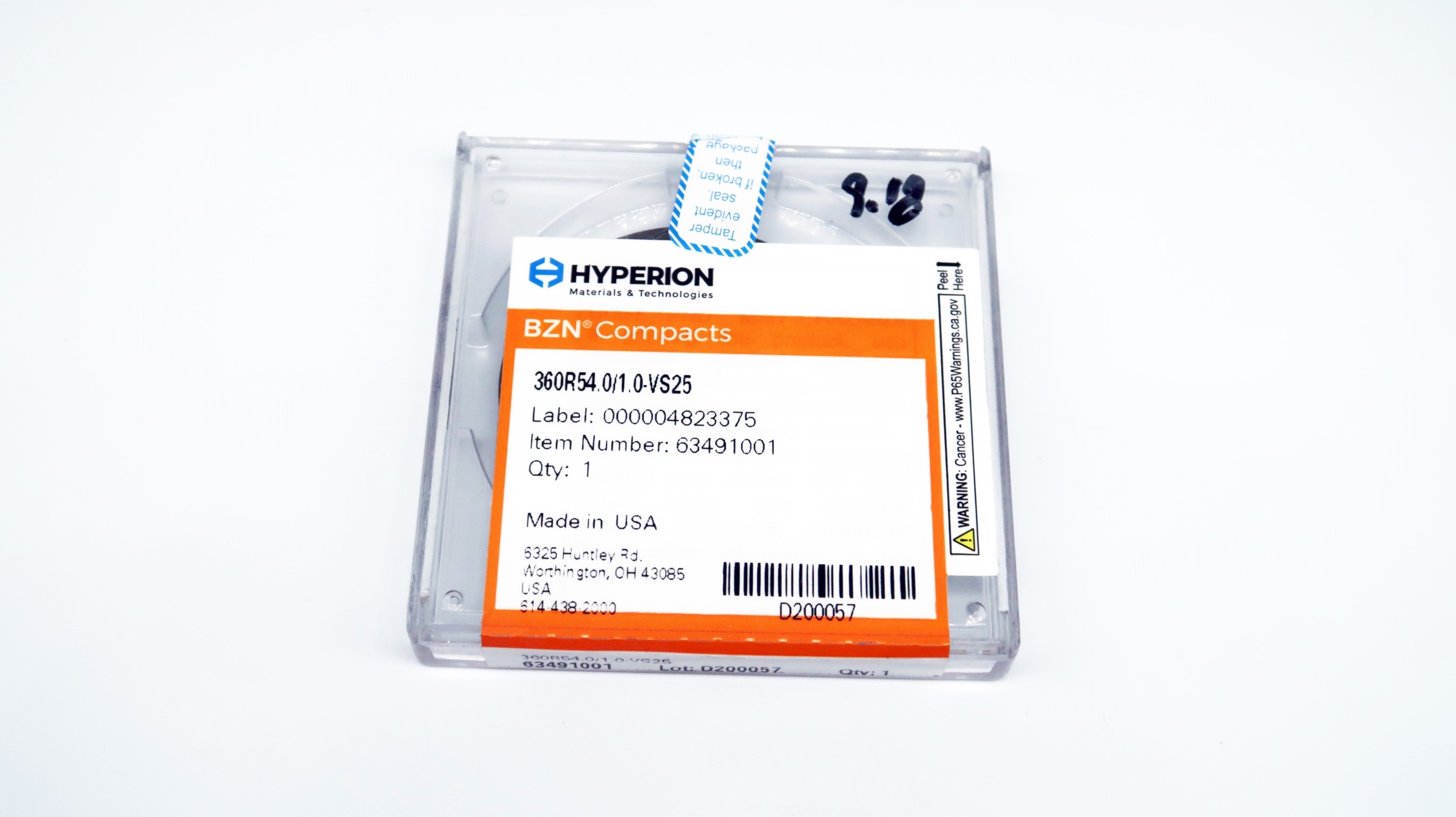

54mm Polycrystalline Cubic Boron Nitride PCBN Disc For Nodular Cast Iron
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Polycrystalline Cubic Boron Nitride | Usage | PCBN Tools |
|---|---|---|---|
| Application | Grey Cast Iron, HSS, Nodular Cast Iron | Thickness | 1.6/2.0/3.2 |
| Availability | In Stock | Transportation | DHL, UPS, TNT, FEDEX |
| High Light | polycrystalline cubic boron nitride disc,PCBN polycrystalline cubic boron nitride |
||
Product Description
PCBN Compact Cutting Inserts For Metal Machining HYPERION 54mm
Description:
Cubic Boron Nitride, abbreviated as CBN or CBN. Cubic boron nitride was found in nature in 2009 by an international team of geologists from the United States, China and Germany and named Qingsongite. Previously, the mineral could only be synthesized in the laboratory. In 2009, scientists from the University of California, Riverside and Lawrence Livermore National Laboratory, along with counterparts from Chinese and German institutions, found the mineral in chrome-rich rocks of ancient oceanic crust about 306 kilometers underground in the mountains of the southern Tibetan Plateau in China.
At the same time, because of its excellent thermal, electrical, optical and acoustic properties, it has been applied in a series of high-tech fields and become a functional material with development prospects.
Quick Details
1. Good weld based in the composite CBN layer and tungsten carbide base.
2. High abrasion resistance.
3. Good transversal rupture strength resistance.
4. Good chemic stability.
5. Uniform dimension precision.
6. Good consistency of processing.
| Specifications | |
| Name | Polycrystalline Cubic Boron Nitride |
| Brand | HYPERION |
| Model | 360R54.0/1.0-VS25 |
| Country | USA |
| Usage | PCBN Tools |
| Application | Grey cast iron, HSS, nodular cast iron |
| Thickness | 1.6/2.0/3.2 |
| Availability | In stock |
| Transportation | DHL, UPS, TNT, FEDEX |
Our catalog for HYPERION PCBN
| Grade | Content | Grit um | Binder |
| BZN6000 | ~90% | 2um | Metal |
| BZN9100 | ~85% | 2um | Ti |
| BZN9500 | ~85% | 2-3um | TiN |
| PM93 | ~83% | 2-3um | TiN |
| PM161 | ~65% | 1-2um | Ti |
| V35 | 70-75% | 2-3um | TiN |
| V25 | ~65% | 2-3um | TiN |
| V20 | ~60% | 2-3um | TiCN |
| HPT135 | ~55% | 1-4um | TiN/TiC |
| HPT130 | ~40% | 2-3um | TiCN |
