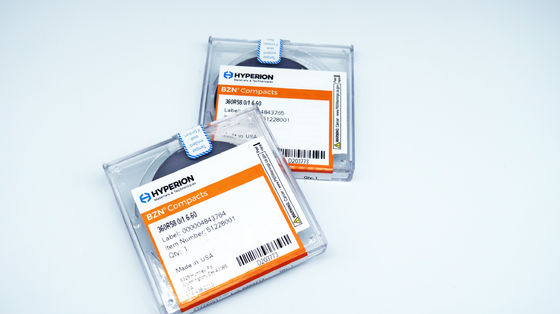

58.0mm High Strength PCBN Blank Diamond Tools For Metal Machining
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Polycrystalline Cubic Boron Nitride | Usage | PCBN Tools |
|---|---|---|---|
| Application | Grey Cast Iron, HSS, Nodular Cast Iron | Thickness | 1.6/2.0/3.2 |
| Availability | In Stock | Transportation | DHL, UPS, TNT, FEDEX |
| High Light | Metal Machining PCBN Blank,58.0mm PCBN Blank,58.0mm diamond tools |
||
Product Description
PCBN Compact Cutting Inserts For Metal Machining HYPERION 58.0mm
Description:
CBN cutter has higher wear resistance than hard alloy and ceramics, and can reduce the size deviation or size dispersion in the processing of large parts. Especially, it is suitable for the equipment with high degree of automation, which can reduce the auxiliary time of changing and adjusting the knife and make its efficiency fully play.
Cubic boron nitride micro powder is used in precision grinding, grinding, polishing and ultra-finishing to achieve high precision machined surfaces. Suitable for resin, metal, ceramic and other binder system, can also be used to produce polycrystalline composite sintered body, can also be used as loose abrasive particles, grinding paste.
Quick Details
1. Good weld based in the composite CBN layer and tungsten carbide base.
2. High abrasion resistance.
3. Good transversal rupture strength resistance.
4. Good chemic stability.
5. Uniform dimension precision.
6. Good consistency of processing.
| Specifications | |
| Name | Polycrystalline Cubic Boron Nitride |
| Brand | HYPERION |
| Model | 360R58.0/1.6-60 |
| Country | USA |
| Usage | PCBN Tools |
| Application | Grey cast iron, HSS, nodular cast iron |
| Thickness | 1.6/2.0/3.2 |
| Availability | In stock |
| Transportation | DHL, UPS, TNT, FEDEX |
Our catalog for HYPERION PCBN
| Grade | Content | Grit um | Binder |
| BZN6000 | ~90% | 2um | Metal |
| BZN9100 | ~85% | 2um | Ti |
| BZN9500 | ~85% | 2-3um | TiN |
| PM93 | ~83% | 2-3um | TiN |
| PM161 | ~65% | 1-2um | Ti |
| V35 | 70-75% | 2-3um | TiN |
| V25 | ~65% | 2-3um | TiN |
| V20 | ~60% | 2-3um | TiCN |
| HPT135 | ~55% | 1-4um | TiN/TiC |
| HPT130 | ~40% | 2-3um | TiCN |
