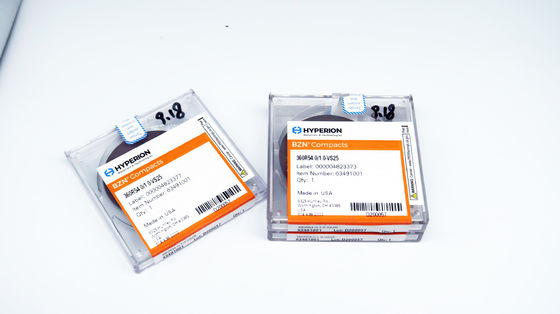

Solid PCBN Blank PCBN Tools 54mm High Abrasion Resistance For Grey Cast Iron
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Polycrystalline Cubic Boron Nitride | Usage | PCBN Tools |
|---|---|---|---|
| Application | Grey Cast Iron, HSS, Nodular Cast Iron | Thickness | 1.6/2.0/3.2 |
| Availability | In Stock | Transportation | DHL, UPS, TNT, FEDEX |
| High Light | 54mm PCBN Blank,solid PCBN Blank,54mm pcbn tools |
||
Product Description
Solid PCBN Compact Cutting Inserts For Al-alloy HYPERION 54mm In Stock
Description:
CBN cutter has higher wear resistance than hard alloy and ceramics, and can reduce the size deviation or size dispersion in the processing of large parts. Especially, it is suitable for the equipment with high degree of automation, which can reduce the auxiliary time of changing and adjusting the knife and make its efficiency fully play.
Combining the strengths of hardness, thermal stability, thermal conductivity, and strong impact resistance ability characteristic of CBN, they are ideal for cutting tools for the machining of ferrous metal and alloy, all with high productive efficiency, high machining precision, and good surface quality.
Quick Details
1. Good weld based in the composite CBN layer and tungsten carbide base.
2. High abrasion resistance.
3. Good transversal rupture strength resistance.
4. Good chemic stability.
5. Excellent dimensional control & consistent surface finish
6. Good consistency of processing.
| Specifications | |
| Name | Polycrystalline Cubic Boron Nitride |
| Brand | HYPERION |
| Model | 360R54.0/1.0-VS25 |
| Country | USA |
| Usage | PCBN Tools |
| Application | Grey cast iron, HSS, nodular cast iron |
| Thickness | 1.6/2.0/3.2 |
| Availability | In stock |
| Transportation | DHL, UPS, TNT, FEDEX |
Our catalog for HYPERION PCBN
| Grade | Content | Grit um | Binder |
| BZN6000 | ~90% | 2um | Metal |
| BZN9100 | ~85% | 2um | Ti |
| BZN9500 | ~85% | 2-3um | TiN |
| PM93 | ~83% | 2-3um | TiN |
| PM161 | ~65% | 1-2um | Ti |
| V35 | 70-75% | 2-3um | TiN |
| V25 | ~65% | 2-3um | TiN |
| V20 | ~60% | 2-3um | TiCN |
| HPT135 | ~55% | 1-4um | TiN/TiC |
| HPT130 | ~40% | 2-3um | TiCN |
