PCD / PCBN Tools' Grinder Cutting Tools Grinder Fully Automatic

Place of Origin CHINA
Brand Name CTSTC
Certification CE
Model Number ZT-90CNC
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details 1200*1168*1530mm
Delivery Time 45-60 days after prepayment
Payment Terms T/T, L/C, D/A, D/P
Supply Ability 20 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Weight 1450kgs After-sales Service Proviede Online Support, Video Technical Support, Engineers Available To Service Machinery Overseas, Field Installation, Commissioning And Training
Product Name Fully Automatic PCD/PCBN Tools' Grinder Cutting Tools Grinder On Sale Key Word PCD/PCBN Grinder
Dimension 1200*1168*1530mm Warranty 2 Years
Cross Table Swiveling Angle 270° Automatic Grade Automatic
High Light

CE Approved PCBN Tools Grinder


Automatic PCD Cutting Tools Grinder


Fully Auto PCD Grinding Machine

Leave a Message
Product Description


ZT-90CNC PCD/PCBN Tools' Grinder


Technical Parameters


Tip Radius 0-70mm
Grinding Pressure 0-450N (adjustable)
Spindle Speed 0-4200RPM (adjustable)
Grinding Wheel Size 150*40*40mm (D*H*T)
Grinding Wheel Oscillation Frequency 0-45/min (adjustable)
Grinding Wheel Oscillation Distance 0-40mm (adjustable)
Grinding Wheel Height Adjustment 140mm
Grinding Wheel Traveling Range 170mm
Grinding Wheel Inclination -13°~+24°
Cross Table Swiveling Angle 270°
Size of Cross Table 210mm*160mm with 4T grooves
Readout of Linear Gratings 0.001mm
Spindle Power 2.2kW
Dimension 1200*1168*1530mm (L*H*W)
Net Weight 1450kgs



















ZT-90CNC is an economical grinding machine designed based on the ZT-90 to meet the automation manufacturing and sophisticated demands of toolmakers working with both hard and ultra-hard materials, such as PCD, PCBN and hard alloy.

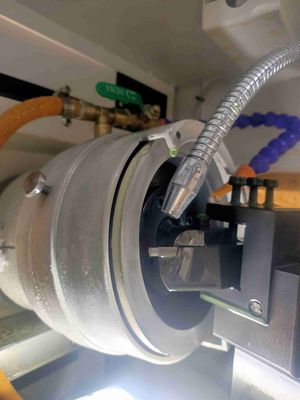

PCD / PCBN Tools' Grinder Cutting Tools Grinder Fully Automatic 0


Design Features:


• Extremely rigid construction with heavy duty cast iron body, more than

18 months natural ageing, stable and durable.

• The spindle can realize lifting and angle adjustment, which embodies the

perfect combination of precision, rigidity and dexterity.

• 5 axis CNC, 2 axis linkage, the whole grinding process is fully automatic.

• Using the latest vision technology, realizes on-line detection, automatic

grinding, parameter memory, machining error alarm, etc., comprehensively improves the machining efficiency, accuracy, automation and stability.

• Spindle motor adopts brush less motor, stable and reliable.

• The whole pneumatic system is of JAPAN SMC brand, to get rapid feed

and outfeed and flexible grinding.

• Equipped with electronic handwheel, can easily adjust the position of

each machining axis and achieve manual grinding.

PCD / PCBN Tools' Grinder Cutting Tools Grinder Fully Automatic 1


Company Introduction

Originally founded by graduates from Tsinghua University, CHN-TOP SCI & TECH CO., LTD. is a high-tech enterprise specialized in diamond tools (PCD, PCBN, MD, ND, CVD) industries, producing high precision processing equipments (PCD/PCBN tools' grinders, vacuum brazing machines, laser cutting and engraving machines, laser processing center). We offer pre-machining services (PCD/PCBN laser cutting, tools brazing, chip breaker engraving, lapping and polishing, etc. ), and distribute world famous PCD/PCBN blanks. Also supply professional consultation and advanced technical services.

We are your only one stop factory in the field of ultra-hard materials processing with a good reputation in the global market.
