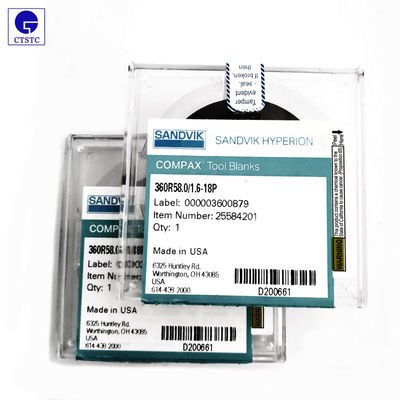

Thickness 1.0mm 1.6mm 2.0mm 3.2mm PCD Cutting Tool Blanks
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | PCD Cutting Tool Blank | Diameter | 48mm 55mm |
|---|---|---|---|
| Micro Size | 5um/10um/25um | Diamond Layer | 0.4-0.6mm |
| Total Thickness | 1.0mm/1.6mm/2.0mm/3.2mm | Application | PCD PCBN Diamond Tools Material, Alumium Cutting |
| High Light | Thickness 1.0mm PCD Cutting Tool Blanks,Thickness 1.6mm PCD Cutting Tool Blanks,Thickness 2.0mm PCD Blanks |
||
You can tick the products you need and communicate with us in the message board.
| Material | Polycrystalline Diamond | |
|---|---|---|
| Diameter | 48mm /55mm | |
| PCD Diamond Layer | 0.4-0.6mm | |
| Total Thickness | 1.0/1.6/2.0/3.2/4.8mm | |
| Micro Size | 5um, 10um, 25um | |
| Application | Alumium Alloy , Wooden cutting |
Product Description
PCD CUTTING TOOL BLANKS PCD BLANKS PCD WIRE DRAWING DIE BLANKS CUTTING TOOL BLANKS PCD WIRE DRAWING DIE BLANKS
CHN-TOP Blanks
Based on the good cooperation with foreign well-known enterprises and scientific research institutions, after years of digestion, introduction, absorption of foreign advanced technology and ideas, we have successfully developed a whole series of polycrystalline diamond blanks(PCD).
And after a long time of testing and practical application, the comprehensive performance of the product(Wear resistance, impact toughness, conductivity, stability, etc.)has approached the international level.
Name: Polycrystalline Diamond
Brand: CT-S&T
Type:
M series-Machining nonferrous metals and nonmetal
W series-Machining nonmetal, especially for woodworking
CHN-TOP Diamond manufactures a PCD cutting tool blank in diameter of 55/47mm. The performance and quality of this large-diameter cutting tool blank is equal in performance to the highest world-class standards.
CHN-TOP not only has world-class production facilities for PCD cutting tool blanks, but also has advanced machines for PCD PCBN diamond grinding, cutting and brazing, and proven PCD surface processing, polishing and cutting technologies.
CHN-TOP produces the widest selection of PCD cutting tool blanks in disc and cut-segment shapes for the precision tooling industry. There are 1μm, 2μm, 5μm, 10μm, 25μm, and mixed grain sizes available. In addition to grain sizes, the product options include polished or non-polished PCD surface, PCD layer thickness and carbide substrate thickness. We also offer nonstandard products on request. We offer technical literature and expert advice from our engineer team. By utilizing the correct grade you can control the surface finish necessary throughout the machining process and receive optimum tool life.
PCD cutting tool blanks are widely used for machining non-ferrous metals and alloys, such as aluminum, copper, aluminum/gray iron composites, as well as nonmetallic materials such as wood, chipboard, ceramics, plastic, rubber etc, where high abrasion resistance and good surface finish are required.
CHN-TOP has been focusing on developing new PCD cutting tool blank grades which are suited to cutting and machining the variety of new and emerging materials in industry, and for tools targeted to meet our customers’ needs.
W series
| Model |
Grit Size (Um) |
Thickness (mm) |
Diameter (mm) |
Abrasive Resistance |
Toughness | Conductivity | Performance | Application |
| ZT10W | 10 | 1.0/1.6/2.0/3.2 | 47.0/55.0 | Middle | Middle | High | Middle grit,good combination property, easy to WEDM | Woodworking, circuit board, plastic, composite,etc |
| ZT025W | 28 | 1.0/1.6/2.0/3.2 | 47.0/55.0 | High | Middle | Middle | Rough grit, long tools' life, could be WEDM | Laminate floor, graphite, sintered ceramic and carbide, composite, etc. |
| ZT302W | 30/2 | 1.0/1.6/2.0/3.2 | 47.0/55.0 | High | Middle | Middle | Good edge quality and strength maintaining, excllent abrasive resistance and thermal stability good EDM machining | Application areas include high silicon aluminum alloys, hard cast irons and bi-metal |
M series
| Model |
Grit Size (Um) |
Thickness (mm) |
Diameter (mm) |
Abrasive Resistance |
Toughness | Conductivity | Performance | Application |
| ZT005 | 5 | 1.0/1.6/2.0/3.2 | 47.0/55.0 | Low | High | High | Fine grit, precision finishing, easy to WEDM | Alumium alloy, copper alloy, noble metal, circuit board, etc. |
| ZT10M | 10 | 1.0/1.6/2.0/3.2 | 47.0/55.0 | Middle | Middle | Middle | Middle grit,wide range of machining | Low silicon alumium alloy, copper alloy, graphite, plastic, composite,etc. |
| ZT025M | 25 | 1.0/1.6/2.0/3.2 | 47.0/55.0 | High | Middle | Low | Rough grit, long tools' life | High silicon alumium alloy, graphite,plastic, composite,etc |
| ZT302M | 30/2 | 1.0/1.6/2.0/3.2 | 47.0/55.0 | High | Middle | Low | Excellent wear resistance,edge strength,edge quality and good thermal stablity | Application areas include high silicon aluminum alloys, hard cast irons and bi-metal |
Machining Service at CHN-TOP
| Carbide Inserts | Notching, Grinding |
| PCD/PCBN Blank | Laser cutting according to the size |
| Brazing service | PCD PCBN diamond brazing service |
| Grinding | Indexable inserts grinding service |
CHN-TOP is the company offer comprehensive solutions for diamond tools making
Machines: PCD/PCBN diamond grinding machine, Vacuum brazing machine, laser cutting machine,
chip breaker machines, laser engraving machine and polishing machines
Material: World famous PCD/ PCBN blanks , such as ILJIN, Element six, Hypersion, Adico, CHN-TOP
CTSTC, SF with competive price
Machining service: Cutting for segements, brazing service for MD/PDC cutter, PCBN tools,
Notching service for tools, chip breaker machining service and grinding service
Application
PCD cutting tool blanks are widely used in various industries:
1. Woodworking industry
2. Metalworking industry: Automobile, etc.
Our sub-micron PCD is mainly for low Si content alloys to obtain perfect processing surface. The fine micron PCD series are for processing low Si content Al alloys, copper & copper alloys.The middle microns are mainly for <14% Si/Al alloys work pieces. The mixed microns and rough microns are good for tooling >14% Si/Al alloys work pieces, cast iron, carbide, CFRP, titanium and metal matrix composites, etc.
3. Electronic industry (3C)
4. Building materials industry
With more than 20 years of experience in diamond tools materials, we have a very good relationship with world famous PCD&PCBN blanks' manufacturers and distribute all brands of PCD&PCBN Blanks
- ILJIN
- Adico
- Hyperion
- Element 6
- TOMEI
CHN-TOP is the company offer comprehensive solutions for diamond tools making
Machines: PCD/PCBN diamond grinding machine, Vacuum brazing machine, laser cutting machine,
chip breaker machines, laser engraving machine and polishing machines
Material: World famous PCD/ PCBN blanks , such as ILJIN, Element six, Hypersion, Adico, CHN-TOP
CTSTC, SF with competive price
Machining service: Cutting for segements, brazing service for MD/PDC cutter, PCBN tools,
Notching service for tools, chip breaker machining service and grinding service
