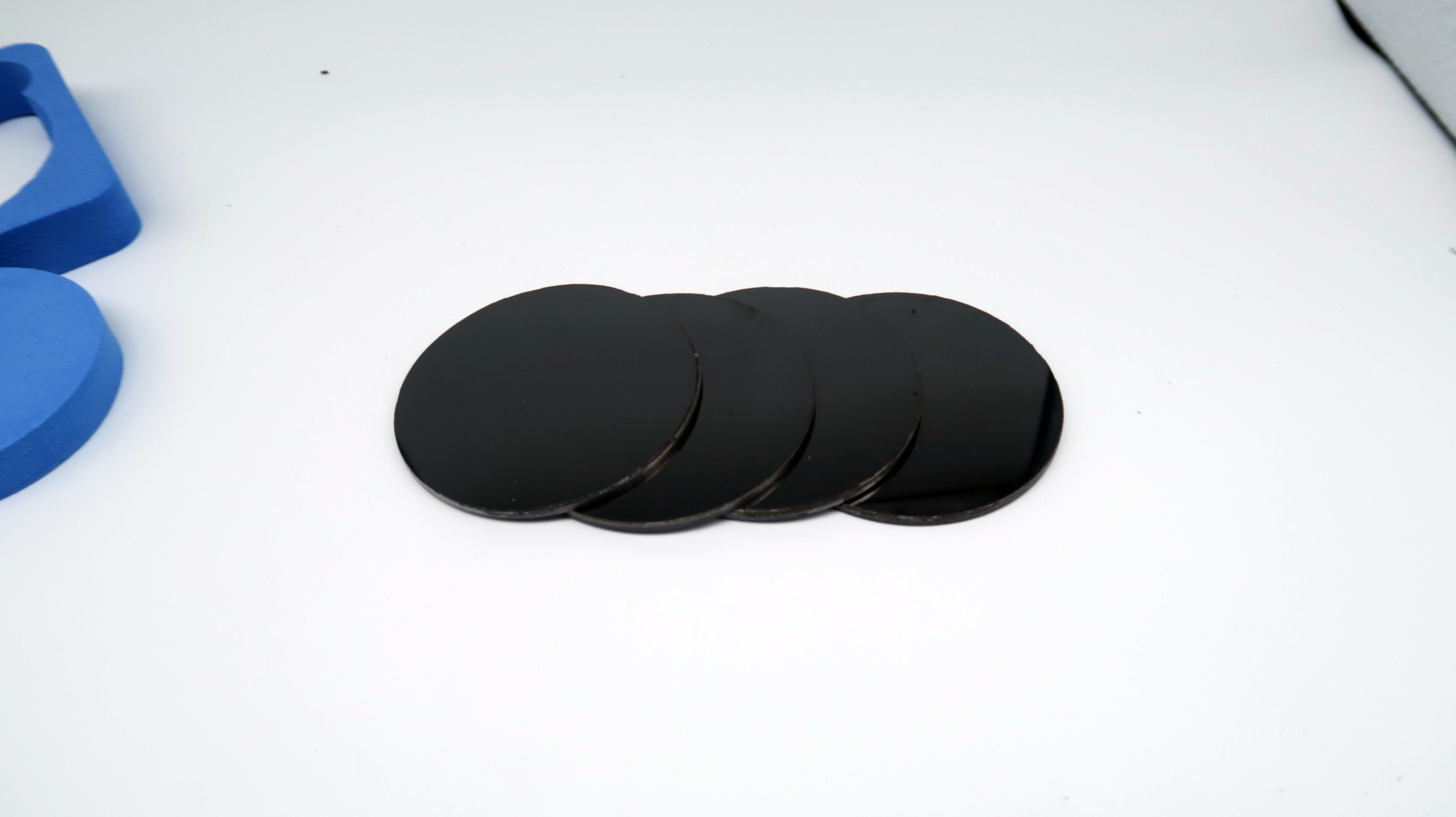

28um High Hardness PCD Blank Sheet High Thermal Conductivity

Place of Origin China
Brand Name CTSTC
Certification CE
Model Number 360R48.0/3.6-010B
Minimum Order Quantity 1pc
Price Negotiable
Packaging Details Carton
Delivery Time 5-8days
Payment Terms L/C, D/P, T/T,

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Polycrystalline Diamond Usage PCD Inserts Cutting Tools
Application Nonferrous Metal、Nonmetal、Wood Thickness 1.6/2.0/3.2
Availability In Stock Transportation DHL, UPS, TNT, FEDEX
Granularity 3-28um
High Light

PCD Blank sheet

,

28um PCD Blank

,

28um pcd cutting tools

Leave a Message
Product Description

Round Ultra-Hard Materials PCD Composite Sheet For Metal Cutting



Quick Details:

1.High hardness, good cutting performance

2.High thermal conductivity, good thermal stability

3.Low friction coefficient, less wear

4.Small expansion coefficient, small thermal deformation, high machining accuracy

5.Small affinity with non-ferrous metal and non-metallic materials, not easy to form nodules during processing



Description:

We have successfully developed a full line of polycrystalline diamond products. This is a direct result of us having introduced and digested advanced overseas technologies, and at the very same time benefiting from domestic production equipment and processes. Enhancement of composite properties alone took well over long time, setting in motion a product line on the leading edge of the international market place.

PCD cutting tool blanks consist of PCD layer integrally sintered at ultra-high pressure and high temperature to a cemented tungsten carbide backing. They have the high hardness and abrasion resistance of nature diamond, and combined with the toughness that of tungsten carbide. Their life are 10 to 100 times of tungsten carbide cutters.



Specifications
Name Polycrystalline Diamond
Brand CT-S&T
Country China
Usage PCD inserts cutting tools
Application  Metal,Nonmetal,Wood
Thickness 1.6/2.0/3.2
Availability In stock
Transportation DHL, UPS, TNT, FEDEX
Grit 3-28um





M-Series

Grade Grit Sizeμm

Thickness

mm

Diameter mm Wear resistance Impact Conductivity
ZT005 5 1.6/2.0/3.2 47.0/54.0 Low High High
ZT10M 10 1.6/2.0/3.2 47.0/54.0 Middle Middle Middle
ZT025M 25 1.6/2.0/3.2 47.0/54.0 High Middle Low
ZT302M 30/2 1.6/2.0/3.2 47.0/54.0 High Middle Low

W-series

Grade Grit Sizeμm

Thickness

mm

Diameter mm Wear resistance Impact Conductivity
ZT10W 10 1.6/2.0/3.2 47.0/54.0 Middle Middle Middle
ZT025W 28 1.6/2.0/3.2 47.0/54.0 High Middle Low
ZT302W 30/2 1.6/2.0/3.2 47.0/54.0 High Middle Low
