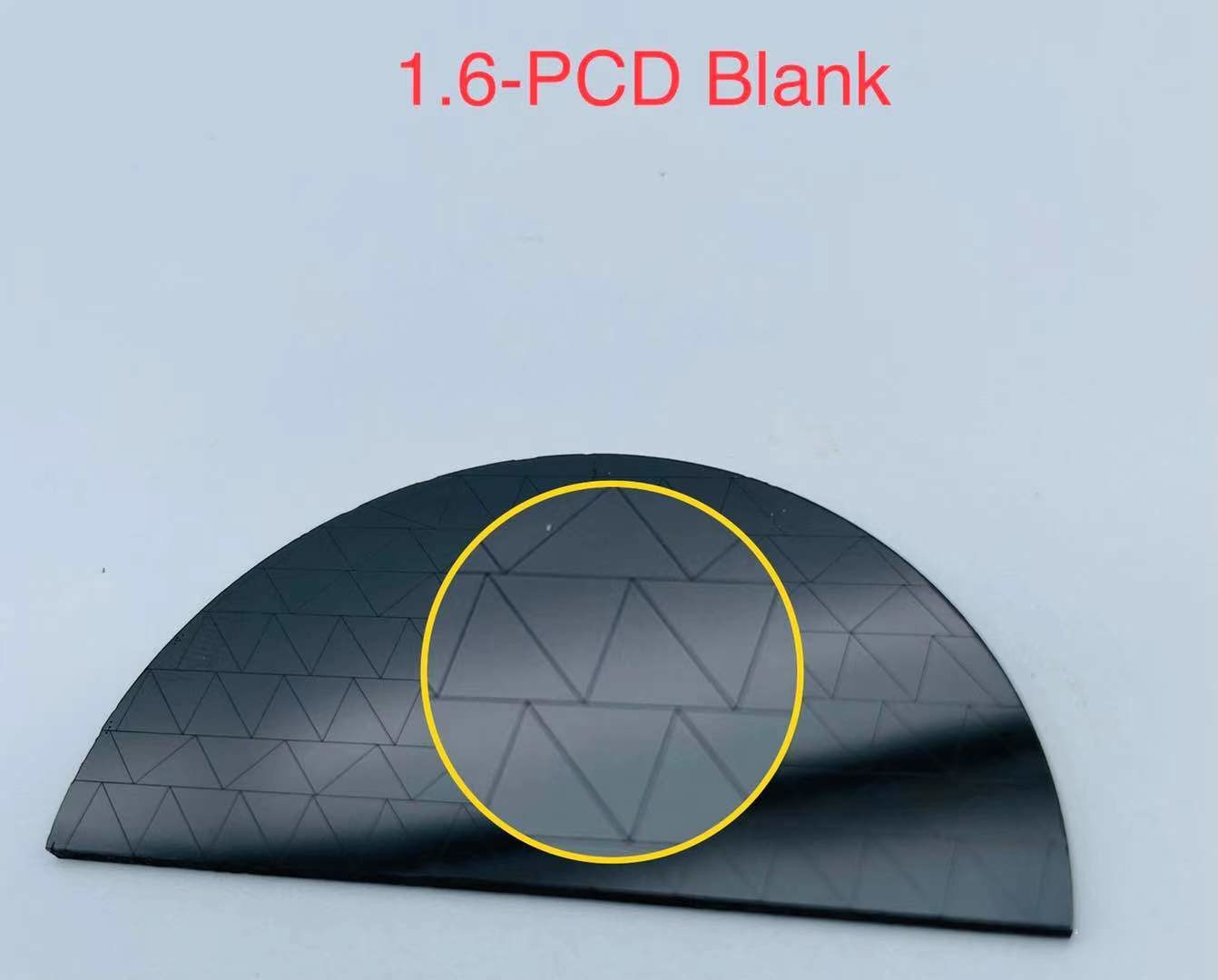

PCBN PCD Diamond Cutting Tool Blanks With World Class Standard
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | PCD Cutting Tool Blank | Diameter | 48mm 55mm |
|---|---|---|---|
| Micro Size | 5um/10um/25um | Diamond Layer | 0.4-0.6mm |
| Total Thickness | 1.0mm/1.6mm/2.0mm/3.2mm | Application | PCD PCBN Diamond Tools Material, Alumium Cutting |
| High Light | PCD Diamond Cutting Tool Blanks,PCBN Diamond Cutting Tool Blanks,World Class Standard PCD Blanks |
||
You can tick the products you need and communicate with us in the message board.
| Material | Polycrystalline Diamond | |
|---|---|---|
| Diameter | 48mm /55mm | |
| PCD Diamond Layer | 0.4-0.6mm | |
| Total Thickness | 1.0/1.6/2.0/3.2/4.8mm | |
| Micro Size | 5um, 10um, 25um | |
| Application | Alumium Alloy , Wooden cutting |
Product Description
PCD Cutting Tool Blanks Polycrystalline Diamond for PCD PCBN diamond tools high quality level with World Class standard
M series
| Model |
Grit Size (Um) |
Thickness (mm) |
Diameter (mm) |
Abrasive Resistance |
Toughness | Conductivity | Performance | Application |
| ZT005 | 5 | 1.0/1.6/2.0/3.2 | 47.0/55.0 | Low | High | High | Fine grit, precision finishing, easy to WEDM | Alumium alloy, copper alloy, noble metal, circuit board, etc. |
| ZT10M | 10 | 1.0/1.6/2.0/3.2 | 47.0/55.0 | Middle | Middle | Middle | Middle grit,wide range of machining | Low silicon alumium alloy, copper alloy, graphite, plastic, composite,etc. |
| ZT025M | 25 | 1.0/1.6/2.0/3.2 | 47.0/55.0 | High | Middle | Low | Rough grit, long tools' life | High silicon alumium alloy, graphite,plastic, composite,etc |
| ZT302M | 30/2 | 1.0/1.6/2.0/3.2 | 47.0/55.0 | High | Middle | Low | Excellent wear resistance,edge strength,edge quality and good thermal stablity | Application areas include high silicon aluminum alloys, hard cast irons and bi-metal |
CHN-TOP Blanks
Based on the good cooperation with foreign well-known enterprises and scientific research institutions, after years of digestion, introduction, absorption of foreign advanced technology and ideas, we have successfully developed a whole series of polycrystalline diamond blanks(PCD).
And after a long time of testing and practical application, the comprehensive performance of the product(Wear resistance, impact toughness, conductivity, stability, etc.)has approached the international level.
Name: Polycrystalline Diamond
Brand: CT-S&T
Type:
M series-Machining nonferrous metals and nonmetal
W series-Machining nonmetal, especially for woodworking
Machining Service at CHN-TOP
| Carbide Inserts | Notching, Grinding |
| PCD/PCBN Blank | Laser cutting according to the size |
| Brazing service | PCD PCBN diamond brazing service |
| Grinding | Indexable inserts grinding service |
With more than 20 years of experience in diamond tools materials, we have a very good relationship with world famous PCD&PCBN blanks' manufacturers and distribute all brands of PCD&PCBN Blanks
- ILJIN
- Adico
- Hyperion
- Element 6
- TOMEI
CHN-TOP is the company offer comprehensive solutions for diamond tools making
Machines: PCD/PCBN diamond grinding machine, Vacuum brazing machine, laser cutting machine,
chip breaker machines, laser engraving machine and polishing machines
Material: World famous PCD/ PCBN blanks , such as ILJIN, Element six, Hypersion, Adico, CHN-TOP
CTSTC, SF with competive price
Machining service: Cutting for segements, brazing service for MD/PDC cutter, PCBN tools,
Notching service for tools, chip breaker machining service and grinding service
