Nonferrous Metal Cutting PCD Grinding Disc 1.6mm Thickness High Precision
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Polycrystalline Diamond | Usage | PCD Inserts Cutting Tools |
|---|---|---|---|
| Application | Aluminium Alloy, Metal, Nonferrous Metals | Thickness | 1.6/2.0/3.2 |
| Availability | In Stock | Transportation | DHL, UPS, TNT, FEDEX |
| Granularity | 10um | ||
| High Light | 1.6mm pcd grinding disc,Nonferrous Metal Cutting pcd grinding disc,1.6mm pcd cutter |
||
Product Description

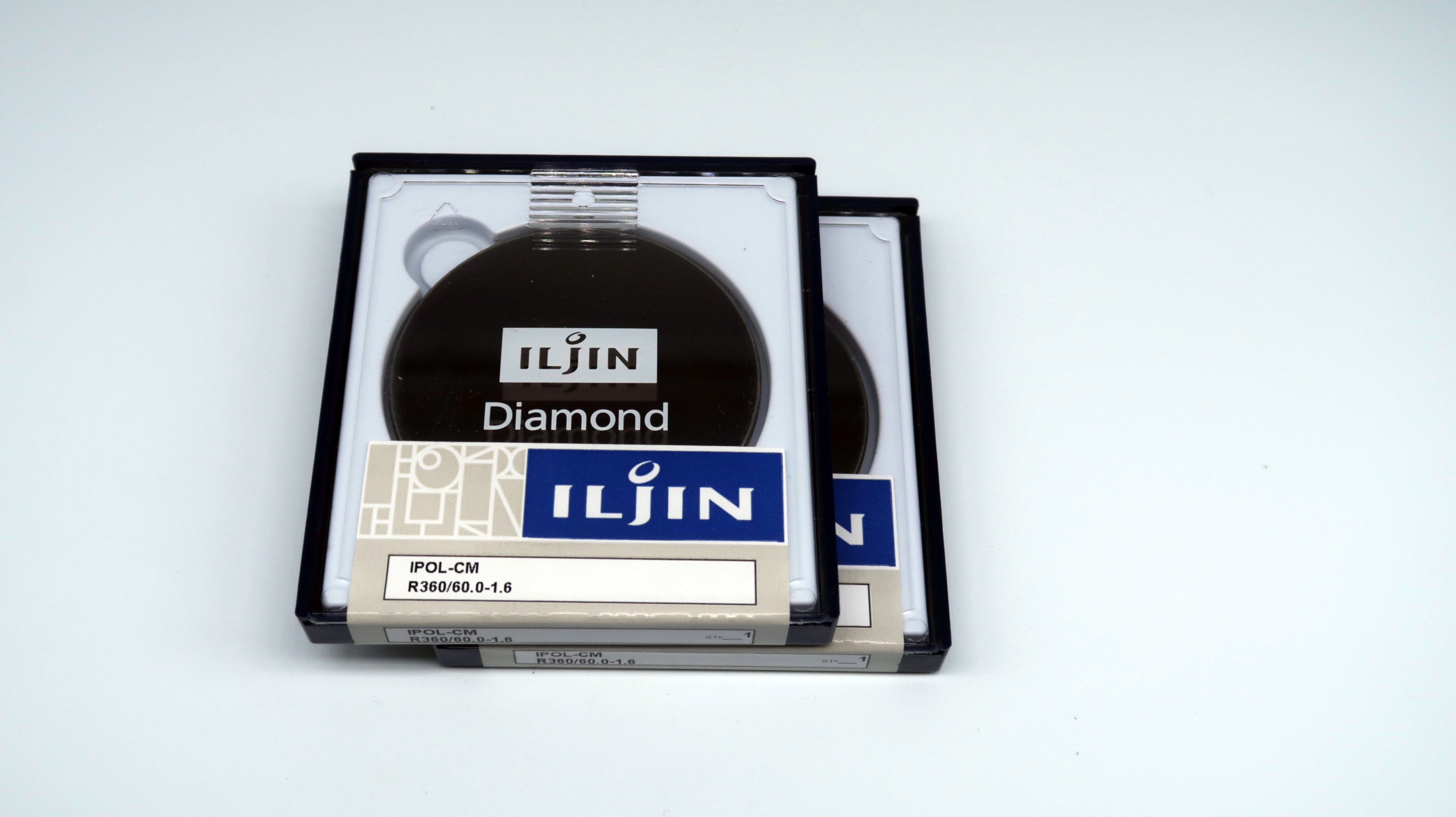

PCD Blank For Nonferrous Metal Cutting Korea 1.6 Thickness
Quick Details:
1.Made from 100% virgin raw material;
2. Professional inspection and high precision
3. Workpiece material: Aluminium,copper,plastic,soft alloy metal.
4. Attractive price and high quality with good service
5.Application holder:turning holder,boring bar.
Description:
PCD cutting tool blanks are produced by sintering selected diamond particles at high pressure and high temperature, and consist of diamond layer and tungsten carbide substrate.
Applications:
Silicon aluminium alloy, metal matrix composites, tungsten carbides, copper, precious metals, bi-metal applications.
Non ferrous metal, non metal, wood cutting, printed circuit board, plastic, green ceramics.
Mining, reaming, turning, drilling ,cutting insert tools.
| Specifications | |
| Name | Polycrystalline Diamond |
| Brand | ILJIN |
| Country | Korea |
| Usage | PCD inserts cutting tools |
| Application | Aluminium alloy, metal, nonferrous metals |
| Thickness | 1.6/2.0/3.2 |
| Availability | In stock |
| Transportation | DHL, UPS, TNT, FEDEX |
| Grit | 10um |
Series of ILJIN PCD blank
| Grade | Grit um | Grindability | Impact | Conductivity |
| XUFII | <1um | Low | High | High |
| CUF | 2um | Low | High | High |
| CFW | 4um | Low | High | High |
| CM | 10um | Middle | Middle | Middle |
| CMW | 10um | Middle | Middle | Middle |
| CCW | 25um | High | Low | Low |
| CXL | 25um | High | Low | Low |
| CXL-II | 35/10/2 mix | Super High | Low | Low |
