54mm Diameter PCD Composite For Wood Cutting High Thermal Stability

Place of Origin China
Brand Name CTSTC
Certification CE
Model Number 360R48.0/3.6-010B
Minimum Order Quantity 1pc
Price Negotiable
Packaging Details Carton
Delivery Time 5-8days
Payment Terms L/C, D/P, T/T,

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Polycrystalline Diamond Usage PCD Inserts Cutting Tools
Application Nonferrous Metal、Nonmetal、Wood Thickness 1.6/2.0/3.2
Availability In Stock Transportation DHL, UPS, TNT, FEDEX
Granularity 3-28um
Leave a Message
Product Description

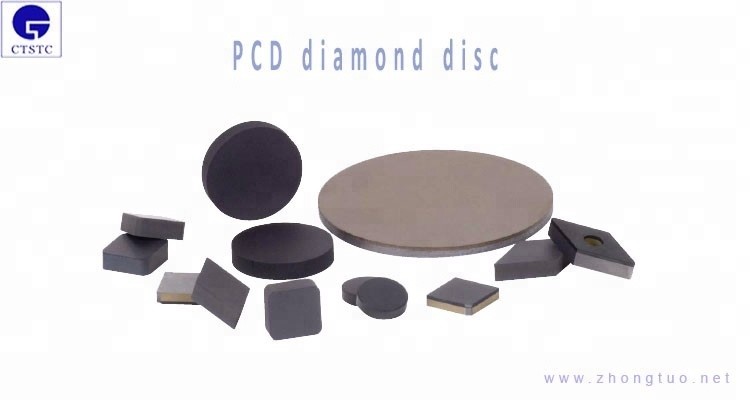

54mm Diameter PCD Composite For Wood Cutting High Thermal Stability



Description:

Our PCD discs can be cut freely into tips by both laser cutting and EDM cutting, which are widely used for woodworking and metalworking tools due to their longer working lives and higher efficiency.

Also, our company is capable of supplying PCD cutting tool tips in various shapes and different sizes in according to your drawings, cut either by laser or EDM wire.



Quick Details:

1. Sharp cutting and high impact and surface finish.
2. Good balance of toughness and wear resistance is required.
3. Longer tool life, high abrasion resistance.
4. Highly improved work piece quality and excellent dimensional control.
5. Enhancement of composite properties.

Specifications
Name Polycrystalline Diamond
Brand CT-S&T
Country China
Usage PCD inserts cutting tools
Application  Metal,Nonmetal,Wood
Thickness 1.6/2.0/3.2
Availability In stock
Transportation DHL, UPS, TNT, FEDEX
Grit 3-28um





M-Series

Grade Grit Sizeμm

Thickness

mm

Diameter mm Wear resistance Impact Conductivity
ZT005 5 1.6/2.0/3.2 47.0/54.0 Low High High
ZT10M 10 1.6/2.0/3.2 47.0/54.0 Middle Middle Middle
ZT025M 25 1.6/2.0/3.2 47.0/54.0 High Middle Low
ZT302M 30/2 1.6/2.0/3.2 47.0/54.0 High Middle Low

W-series

Grade Grit Sizeμm

Thickness

mm

Diameter mm Wear resistance Impact Conductivity
ZT10W 10 1.6/2.0/3.2 47.0/54.0 Middle Middle Middle
ZT025W 28 1.6/2.0/3.2 47.0/54.0 High Middle Low
ZT302W 30/2 1.6/2.0/3.2 47.0/54.0 High Middle Low



Application:

PCD cutting tool blanks are widely used for the machining of non-ferrous metals and alloys, such as aluminum, copper, aluminum / gray iron composites, as well as nonmetallic materials such as wood, chipboard, ceramics, plastic, rubber etc, where high abrasion resistance and good surface finish are required. The products are available in 5um, 10 um and 25um.

54mm Diameter  PCD Composite For Wood Cutting High Thermal Stability 0
