Production Workshop CNC Fiber Laser Cutting Machine For PDC Material Polishing Process
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | ZT-JGC200 | Fiber Type | Fiber Laser |
|---|---|---|---|
| Application | PDC Laser Turning | Material | PDC |
| High Light | Production Workshop CNC Fiber Laser,PDC Material Polishing CNC Machine,PDC CNC Laser Cutting Machine |
||
You can tick the products you need and communicate with us in the message board.
| Laser Source | Fiber (German original laser) | |
|---|---|---|
| Control Method | Software | |
| Laser Power | 30W | |
| Wave Length | 1064 | |
| Laser Mode | TM01 | |
| Beam Full Divergence | 1.5-2.0rad | |
| Focus Adjusting Range | 0-30mm | |
| Location Mode | CCD Coaxial | |
| Motion Control | 3 axis + optical 2 axis |
Product Description
CNC Fiber Laser Cutting Machine Laser Turning Machine For PDC Material
| Technical Specification | |
| Laser Source | Specially Customized Fiber Laser Module |
| CNC System | CNC System Based on Windows, X/Y/Z High Precision Removable, Optical 2 axis |
| Software Control System | Self-developed PLC control system |
| Focus System | Imported High Resolution Laser Sensor |
| Rotation Axis | Servo High Precision Rotation Axis |
| Automatic loading and unloading | High precision 4-axis manipulator |
| Power Supply | 380V-3Phases-5Wires |
| Overall Rated Power | 10KW |
| Laser Source | Fiber |
| Laser Power | 100 W |
| Cooling Method | Water Cooling |
| Table Travel | 200*200*60 mm |
| Runout of rotation axis (A-axis) | Runout tolerance ≤0.005mm |
| Repeat positioning accuracy | ≤0.003 mm |
| Load capacity | 10 kg |
| Rotation Axis(SP-axis) | ≤600 r/m |
| Tray size | 286(￠16) |
| Manipulator Length | 4-axis@400mm (Standard) |
| Remove Efficiency | 0.2 mm@￠16 mm/min |
| Dedusting System | Optional |
| Dimension | 1500(L)*920(W)*1640(H) |

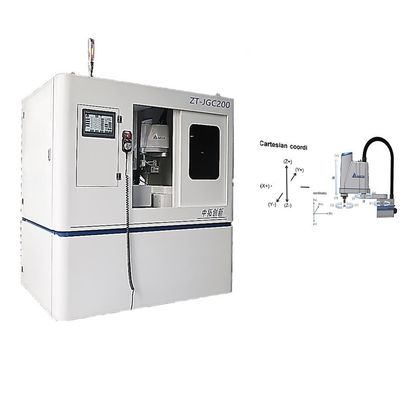

ZT-JGC200 is mainly used for PCD/PDC/CVD rough polishing process
Advanced fiber laser module, more stable, more precise, more durable, avoid tedious maintenance

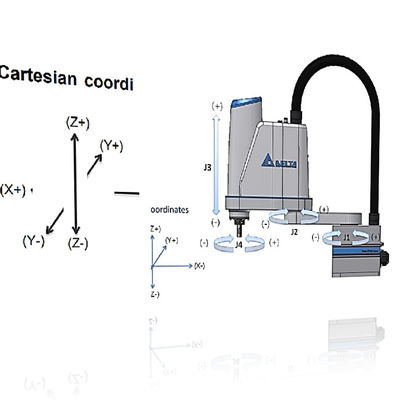

Manipulator with a span of 400mm, automatic loading and unloading
FAQ
Q: Are you trading company or manufacturer ?
A: We are manufactory for PCD,CBN diamond tools equipments and service, we have our own R&D
team and production workshop. We can develop our customers' unique products according to their needs.
Q: How long is your delivery time?
A: Generally it is 2-3 days for CNC diamonds tools machining, and 45-60 days for machines.
Q: How about your after-sales system?
A: We have a comprehensive after-sales system, which can provide one-on-one online video service
according to the needs of customers, and one-on-one service to solve customers' worries.
Q: How about your delivery date for PCD/PCBN blank?
A: 1), PCD/PCBN Blank, we have signed a Chinese agency agreement with international big brands,
customers do not need to worry about genuine and delivery problems;
2), We can provide a wide range of products with PCD/ PCBN Blank, customers can choose goods according
to different needs, we also have self-developed domestic PCD with high quality, the price is very competitive.
Q: How about the cutting thickness and width of Laser cutting machine?
A: 1), Cutting thickness, single-sided cutting maximum thickness of 4-5mm, double-sided cutting maximum
thickness of 8 10mm.
2), Slit width: 0.05-0.15mm, accuracy can reach 0.01mm.
Company Introduction
Originally founded by graduates from Tsinghua University, CHN-TOP SCI & TECH CO., LTD. is a high-tech enterprise specialized in diamond tools (PCD, PCBN, MD, ND, CVD) industries, producing high precision processing equipments (PCD/PCBN tools' grinders, vacuum brazing machines, laser cutting and engraving machines, laser processing center). We offer pre-machining services (PCD/PCBN laser cutting, tools brazing, chip breaker engraving, lapping and polishing, etc. ), and distribute world famous PCD/PCBN blanks. Also supply professional consultation and advanced technical services.
We are your only one stop factory in the field of ultra-hard materials processing with a good reputation in the global market.
