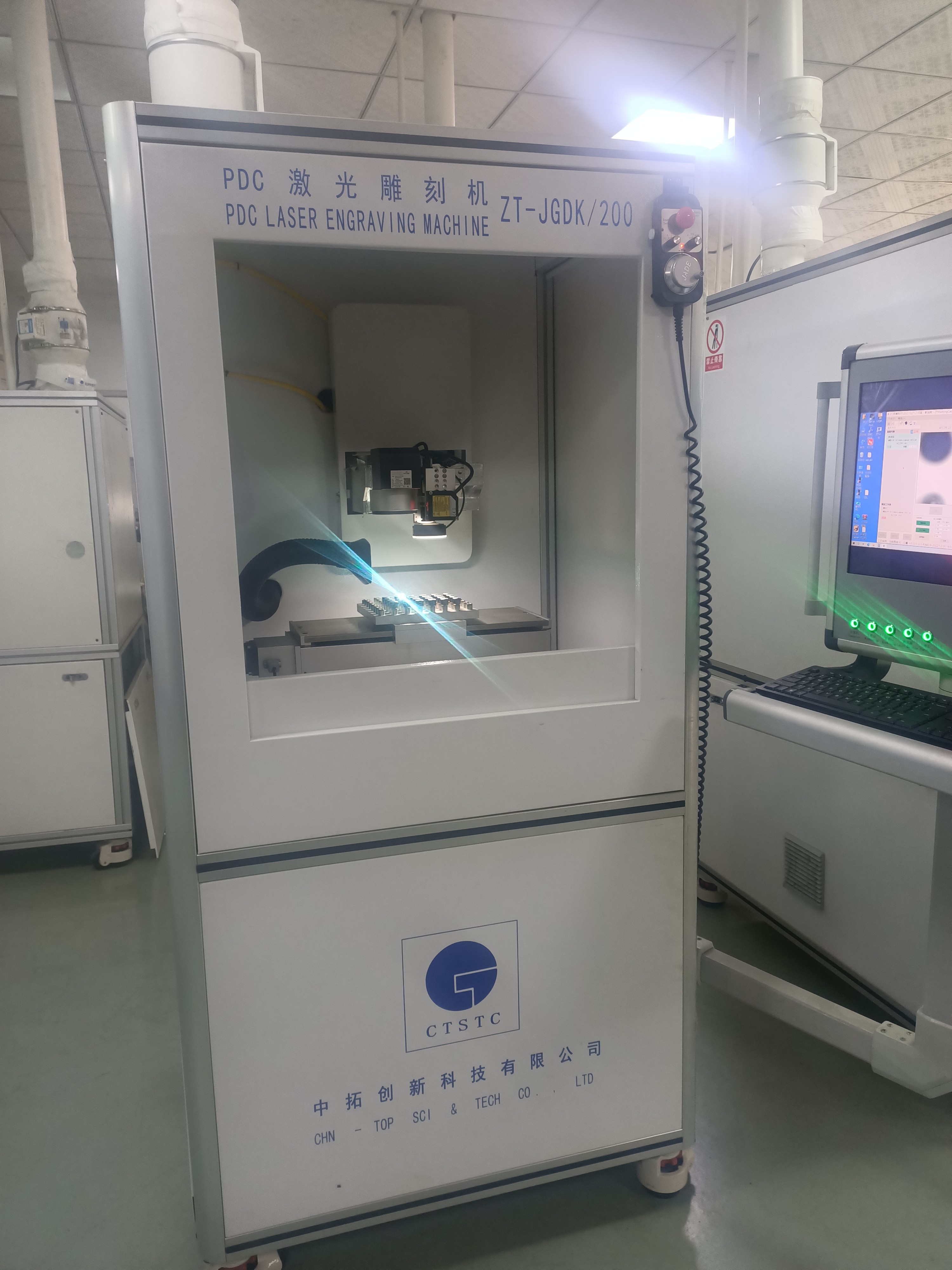

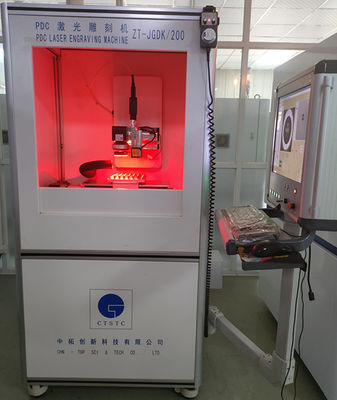

10-100kHz PDC Engraving Machine 200*200*60mm Table Travel

Place of Origin CHINA
Brand Name CTSTC
Model Number ZT-JGDK200
Minimum Order Quantity 1
Packaging Details plywood box
Delivery Time 45-60 days
Payment Terms TT/LC/Western Union

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Laser Source Fiber Output Power ≤100W
Remove Efficiency 0.005mm/layer Location Mode CCD Visual Location(German Orginal Camera)
Dimension 1280*950*1900(L*W*H) Cooling Method Air Cooling
Consumable Non Wave Length 1064nm
High Light

100kHz PDC Engraving Machine

,

Air Cooling PDC Engraver

,

2.5kW Fiber Laser Engraving Machine

Leave a Message
Product Description

Product Description:

Fiber Laser Engraving Machine is a perfect tool for PDC tools engraving and PDC processing. It is characterized by high positioning accuracy of ≤0.01mm, 200*200*60mm table travel, air cooling, mechanical 2 axis + optical 2 axis (Germany) + Z axis (linkage) motion control, and a dimension of 1280*950*1900(L*W*H). Ideal for PDC tools engraving, this PDC tools engraving machine is perfect for various tasks like marking, engraving and cutting. It can also be used for wide range of materials for industrial applications in many industries, such as electronics, auto parts, hardware tools, watches and clocks, medical instruments and so on. With the help of this PDC tools engraving machine, you can achieve precise results and create intricate designs with ease, making it a great choice for engraving and cutting applications.



Features:

  • Product Name: Fiber Laser Engraving Machine
  • Wave Length: 1064nm
  • Table Travel: 200*200*60mm
  • Overall Rated Power: 2.5kW
  • Motion Control: Mechanical 2 Axis + Optical 2 Axis(Germany)+Z Axis(linkage)
  • Remove Efficiency: 0.005mm/layer


Technical Parameters:

Parameter Value
Overall Rated Power 2.5 kW
Motion Control Mechanical 2 Axis + Optical 2 Axis (Germany) + Z Axis (linkage)
Cooling Method Air Cooling
Consumable Non
Remove Efficiency 0.005 mm/layer
Focus Adjusting Range 0-30 mm
Control Method Software Extrocontrol
Positioning Accuracy ≤ 0.01 mm
Power Instability ≤ 4%
Beam Full Divergence 1.5-2.0 rad


Applications:

CTSTC ZT-JGDK 200 fiber laser engraving machine is an advanced laser engraving machine specially designed for PDC engraving and cutting. It has a minimum order quantity of 1, with a delivery time of 45-60 days. The packages are usually plywood boxes. It is famous for its high remove efficiency of 0.005mm/layer and positioning accuracy of ≤0.01mm. It also has high end performance in terms of table travel (200*200*60mm) and focus adjusting range (0-30mm). Most importantly, it is a non consumable machine and can be used for years without any additional expenses. It is a reliable and suitable machine for both PDC engraving and PDC cutting. It is highly recommended for industries that require PDC machine tools.



Customization:

  • Brand Name: CTSTC
  • Model Number: ZT-JGDK200
  • Place of Origin: CHINA
  • Minimum Order Quantity: 1
  • Packaging Details: plywood box
  • Delivery Time: 45-60 days
  • Payment Terms: TT/LC/Western Union
  • Removal Efficiency: 0.005mm/layer
  • Wave Length: 1064nm
  • Table Travel: 200*200*60mm
  • Power Instability: ≤4%
  • Net Weight: 680kgs
  • Product Features: This Fiber Laser Engraving Machine is suitable for cbn engraving machine, PDC processing machine, and laser engraving machine.
