CNC Fiber Laser Cutting Machine Laser Turning Machine For PDC Material

Place of Origin CHINA
Brand Name CHN-TOP
Certification CE
Model Number ZT-JGC200
Minimum Order Quantity 1SETS
Price Negotiable
Packaging Details WOODEN CASE
Delivery Time 45-60 DAYS
Payment Terms L/C, T/T, MoneyGram, D/A
Supply Ability 30 SETS PER MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Model ZT-JGC200 Fiber Type Fiber Laser
Application PDC Laser Turning Material PDC
High Light

PDC Material Laser Turning Machine


PDC Laser Turning Machine


PDC Fiber Laser Turning Machine

You can tick the products you need and communicate with us in the message board.
Laser Source Fiber (German original laser)
Control Method Software
Laser Power 30W
Wave Length 1064
Laser Mode TM01
Beam Full Divergence 1.5-2.0rad
Focus Adjusting Range 0-30mm
Location Mode CCD Coaxial
Motion Control 3 axis + optical 2 axis
Leave a Message
Laser Source Fiber (German original laser)
Product Description

CNC Fiber Laser Cutting Machine Laser Turning Machine For PDC Material



Technical Specification
Laser Source Specially Customized Fiber Laser Module
CNC System CNC System Based on Windows, X/Y/Z High Precision Removable, Optical 2 axis
Software Control System Self-developed PLC control system
Focus System Imported High Resolution Laser Sensor
Rotation Axis Servo High Precision Rotation Axis
Automatic loading and unloading High precision 4-axis manipulator
Power Supply 380V-3Phases-5Wires
Overall Rated Power 10KW
Laser Source Fiber
Laser Power 100 W
Cooling Method Water Cooling
Table Travel 200*200*60 mm
Runout of rotation axis (A-axis) Runout tolerance 0.005mm
Repeat positioning accuracy 0.003 mm
Load capacity 10 kg
Rotation Axis(SP-axis) 600 r/m
Tray size 286(¢16)
Manipulator Length 4-axis@400mm (Standard)
Remove Efficiency 0.2 mm@16 mm/min
Dedusting System Optional
Dimension 1500(L)*920(W)*1640(H)

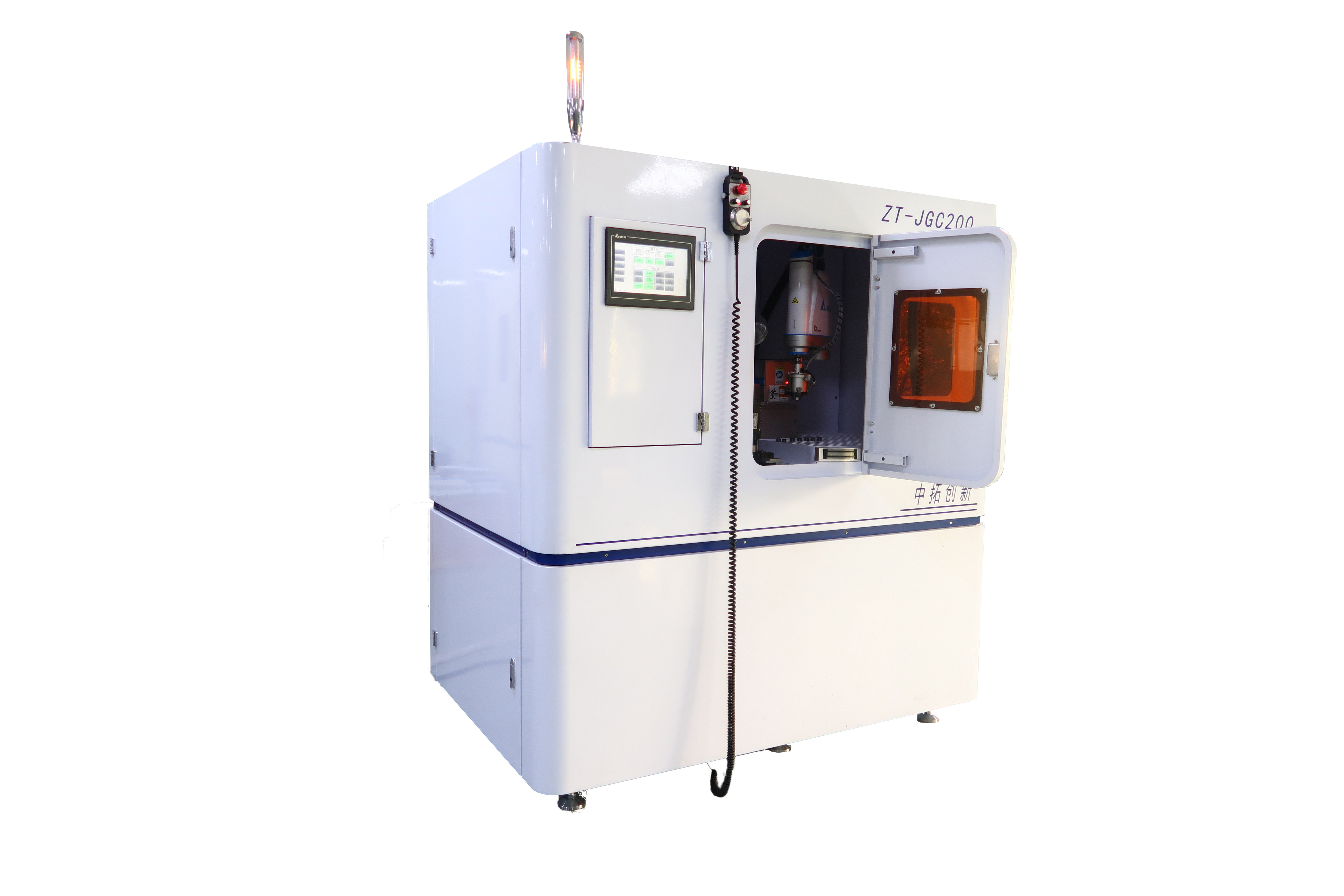

CNC Fiber Laser Cutting Machine Laser Turning Machine For PDC Material 0


ZT-JGC200 is mainly used for PCD/PDC/CVD rough polishing process


CNC Fiber Laser Cutting Machine Laser Turning Machine For PDC Material 1



Q: Are you trading company or manufacturer ?
A: We are manufactory for PCD,CBN diamond tools equipments and service, we have our own R&D

team and production workshop. We can develop our customers' unique products according to their needs.

Q: How long is your delivery time?
A: Generally it is 2-3 days for CNC diamonds tools machining, and 45-60 days for machines.

Q: How about your after-sales system?
A: We have a comprehensive after-sales system, which can provide one-on-one online video service

according to the needs of customers, and one-on-one service to solve customers' worries.

Q: How about your delivery date for PCD/PCBN blank?
A: 1), PCD/PCBN Blank, we have signed a Chinese agency agreement with international big brands,

customers do not need to worry about genuine and delivery problems;
2), We can provide a wide range of products with PCD/ PCBN Blank, customers can choose goods according

to different needs, we also have self-developed domestic PCD with high quality, the price is very competitive.

Q: How about the cutting thickness and width of Laser cutting machine?
A: 1), Cutting thickness, single-sided cutting maximum thickness of 4-5mm, double-sided cutting maximum

thickness of 8 10mm.
2), Slit width: 0.05-0.15mm, accuracy can reach 0.01mm.

CNC Fiber Laser Cutting Machine Laser Turning Machine For PDC Material 2

CNC Fiber Laser Cutting Machine Laser Turning Machine For PDC Material 3



Company Introduction

Originally founded by graduates from Tsinghua University, CHN-TOP SCI & TECH CO., LTD. is a high-tech enterprise specialized in diamond tools (PCD, PCBN, MD, ND, CVD) industries, producing high precision processing equipments (PCD/PCBN tools' grinders, vacuum brazing machines, laser cutting and engraving machines, laser processing center). We offer pre-machining services (PCD/PCBN laser cutting, tools brazing, chip breaker engraving, lapping and polishing, etc. ), and distribute world famous PCD/PCBN blanks. Also supply professional consultation and advanced technical services.

We are your only one stop factory in the field of ultra-hard materials processing with a good reputation in the global market.
