Fiber Laser PDC Engraving Machine PDC CNC Cutting Machine

Place of Origin CHINA
Brand Name CTSTC
Certification CE
Model Number ZT-JGDK200
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details 1280*950*1900mm
Delivery Time 45-60 days after prepayment
Payment Terms T/T, D/P, D/A, L/C
Supply Ability 20 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Fiber Laser PDC Engraving Making Machine PDC CNC Cutting Machine Condition New
Certification CE, FDA Warranty 2 Years
Laser Source Fiber Laser Application Ultra Hard Material Engraving
After-sales Service Provided Engineers Available To Service Machinery Overseas CNC Or Not Yes
High Light

Fiber Laser PDC Engraving Machine

,

Fiber Laser PDC CNC Cutting machine

,

1064nm PDC Engraving Machine

Leave a Message
Product Description



ZT-JGDK200 PDC Automatic Laser Engraving Machine



Technology Parameters
Laser Source Fiber
Frequency 10-100kHz
Control Method Software Extrocontrol
Wave Length 1064nm
Output Power ≤1000W
Power Instability ≤4%
Beam Full Divergence 1.5-2.0rad
Focus Adjusting Range 0-30mm
Remove Efficiency 0.005mm/layer
Table Travel 200*200*60mm
Positional Accuracy ≤0.03mm
Location Mode CCD Coaxial
Motion Control 3 axis + optical 2 axis
Max Processing Depth ≤1mm
Cooling Method Air Cooling
Consumble No

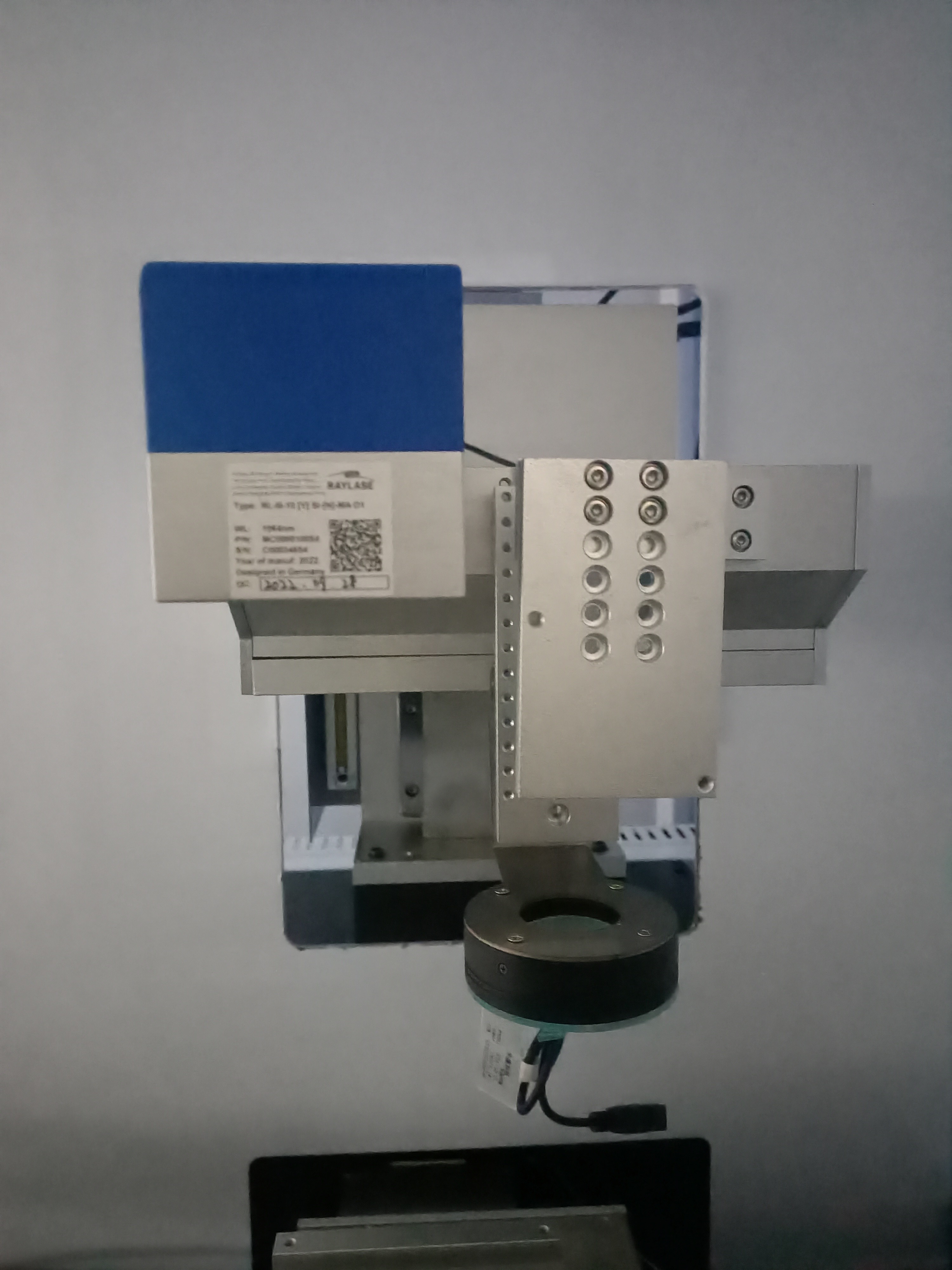

Fiber Laser PDC Engraving Machine PDC CNC Cutting Machine 0





Design Features:

• CCD visual positioning, automatic focusing, the processing shapes can be arbitrary 3D graphics, and the processing status can be viewed.

• Standard 3D software input, combined parameter adjustment, rough and finish machining can be completed by one key.

• Closed-loop high precision work table control system is more precise for positioning.

• Positioning accuracy ≤0.01mm, machining precision ≤0.05mm.

• Multiple work pieces loading, 64 pcs per cycle, one key operation, unattended operation.

• High processing efficiency, removes 0.005mm per layer, the maximum machining depth is 30mm, surface roughness ≤1.2um.





Applications:

This machine is applicable to ultra-hrad tools, PCD ,PCBN, Solid CBN.



Place of Origin: China

Brand Name:CTSTC

Model Number:ZT-JGDK26

Certification:CE



Minimum Order Quantity: 1 set

Price:$52,500-$75,000

Packaging Details: wooden box

Delivery Time:60days

Payment Terms:FOB



Fiber Laser PDC Engraving Machine PDC CNC Cutting Machine 1Fiber Laser PDC Engraving Machine PDC CNC Cutting Machine 2





Company Introduction



Originally founded by graduates from Tsinghua University, CHN-TOP SCI & TECH CO., LTD. is a high-tech enterprise specialized in diamond tools (PCD, PCBN, MD, ND, CVD) industries, producing high precision processing equipments (PCD/PCBN tools' grinders, vacuum brazing machines, laser cutting and engraving machines, laser processing center). We offer pre-machining services (PCD/PCBN laser cutting, tools brazing, chip breaker engraving, lapping and polishing, etc. ), and distribute world famous PCD/PCBN blanks. Also supply professional consultation and advanced technical services.

We are your only one stop factory in the field of ultra-hard materials processing with a good reputation in the global market.
