Laser Cutting And Engraving Machine For PDC Professional Engraving Fully Automatic

Place of Origin CHINA
Brand Name CTSTC
Certification CE
Model Number ZT-JGDK200
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details 1280*950*1900mm
Delivery Time 45-60 days after prepayment
Payment Terms T/T, D/P, D/A, L/C
Supply Ability 20 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Laser Cutting And Engraving Machine For PDC Professional Engraving Fully Automatic Condition New
Certification CE, FDA Warranty 2 Years
Laser Source Fiber Laser Application Ultra Hard Material Engraving
After-sales Service Provided Engineers Available To Service Machinery Overseas CNC Or Not Yes
Highlight

PDC Laser Cutting Engraving Machine

,

2.0rad Laser Cutting Engraving Machine

,

Automatic PDC Fiber Laser Engraving Machine

Leave a Message
Product Description



Laser Cutting And Engraving Machine For PDC Professional Engraving Fully Automatic



Technology Parameters
Laser Source Fiber
Frequency 10-100kHz
Control Method Software Extrocontrol
Wave Length 1064nm
Output Power ≤1000W
Power Instability ≤4%
Beam Full Divergence 1.5-2.0rad
Focus Adjusting Range 0-30mm
Remove Efficiency 0.005mm/layer
Table Travel 200*200*60mm
Positional Accuracy ≤0.03mm
Location Mode CCD Coaxial
Motion Control 3 axis + optical 2 axis
Max Processing Depth ≤1mm
Cooling Method Air Cooling
Consumble No

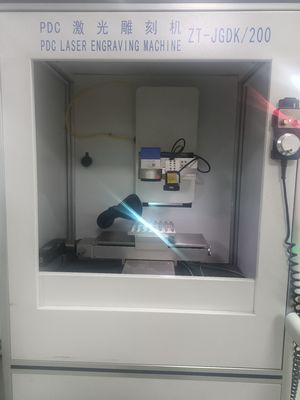

ZT-JGDK200 laser engraving machine is mainly used for special-shaped diamond surface processing of PDC of petroleum drill head, it can engrave PDC with complex 3D graphics. The machine adopts visual recognition for automatic positioning, the industrial camera is imported from Germany, automatic focusing, closed-loop control for all motions.

Laser Cutting And Engraving Machine For PDC Professional Engraving Fully Automatic 0







Applications:

This machine is applicable to ultra-hrad tools, PCD ,PCBN, Solid CBN.



Place of Origin: China

Brand Name:CTSTC

Model Number:ZT-JGDK26

Certification:CE



Minimum Order Quantity: 1 set

Price:$52,500-$75,000

Packaging Details: wooden box

Delivery Time:60days

Payment Terms:FOB



Laser Cutting And Engraving Machine For PDC Professional Engraving Fully Automatic 1Laser Cutting And Engraving Machine For PDC Professional Engraving Fully Automatic 2





Company Introduction



Originally founded by graduates from Tsinghua University, CHN-TOP SCI & TECH CO., LTD. is a high-tech enterprise specialized in diamond tools (PCD, PCBN, MD, ND, CVD) industries, producing high precision processing equipments (PCD/PCBN tools' grinders, vacuum brazing machines, laser cutting and engraving machines, laser processing center). We offer pre-machining services (PCD/PCBN laser cutting, tools brazing, chip breaker engraving, lapping and polishing, etc. ), and distribute world famous PCD/PCBN blanks. Also supply professional consultation and advanced technical services.

We are your only one stop factory in the field of ultra-hard materials processing with a good reputation in the global market.
