Professional PDC Laser Cutting And Engraving Machine With 3 Axis

Place of Origin CHINA
Brand Name CTSTC
Certification CE
Model Number ZT-JGDK200
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details 1280*950*1900mm
Delivery Time 45-60 days after prepayment
Payment Terms T/T, D/P, D/A, L/C
Supply Ability 20 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Product Name Laser Cutting And Engraving Machine PDC Professional Engraving With 3 Axis Condition New
Certification CE, FDA Warranty 2 Years
Laser Source Fiber Laser Application Ultra Hard Material Engraving
After-sales Service Provided Engineers Available To Service Machinery Overseas CNC Or Not Yes
High Light

PDC Cutting And Engraving Machine


1064nm PDC Laser Engraving Machine


3Axis CNC Laser Engraving Machine

Leave a Message
Product Description


Laser Cutting And Engraving Machine PDC Professional Engraving With 3 Axis


Technology Parameters
Laser Source Fiber
Frequency 10-100kHz
Control Method Software Extrocontrol
Wave Length 1064nm
Output Power ≤1000W
Power Instability ≤4%
Beam Full Divergence 1.5-2.0rad
Focus Adjusting Range 0-30mm
Remove Efficiency 0.005mm/layer
Table Travel 200*200*60mm
Positional Accuracy ≤0.03mm
Location Mode CCD Coaxial
Motion Control 3 axis + optical 2 axis
Max Processing Depth ≤1mm
Cooling Method Air Cooling
Consumble No

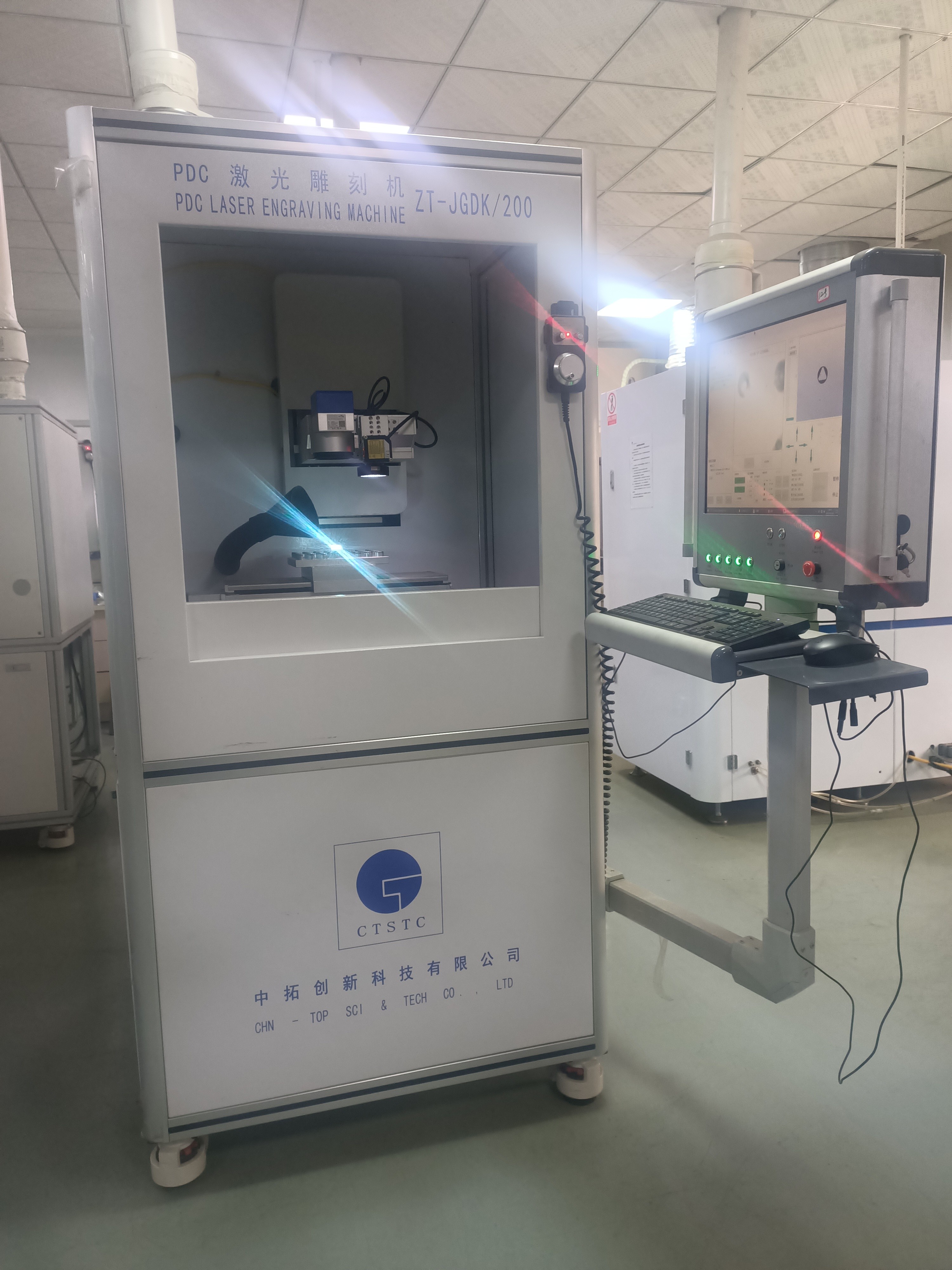

Professional PDC Laser Cutting And Engraving Machine With 3 Axis 0



Design Features:

• CCD visual positioning, automatic focusing, the processing shapes can be arbitrary 3D graphics, and the processing status can be viewed.

• Standard 3D software input, combined parameter adjustment, rough and finish machining can be completed by one key.

• Closed-loop high precision work table control system is more precise for positioning.

• Positioning accuracy ≤0.01mm, machining precision ≤0.05mm.

• Multiple work pieces loading, 64 pcs per cycle, one key operation, unattended operation.

• High processing efficiency, removes 0.005mm per layer, the maximum machining depth is 30mm, surface roughness ≤1.2um.




This machine is applicable to ultra-hrad tools, PCD ,PCBN, Solid CBN.


Place of Origin: China

Brand Name:CTSTC

Model Number:ZT-JGDK26



Minimum Order Quantity: 1 set


Packaging Details: wooden box

Delivery Time:60days

Payment Terms:FOB


Professional PDC Laser Cutting And Engraving Machine With 3 Axis 1Professional PDC Laser Cutting And Engraving Machine With 3 Axis 2



Company Introduction


Originally founded by graduates from Tsinghua University, CHN-TOP SCI & TECH CO., LTD. is a high-tech enterprise specialized in diamond tools (PCD, PCBN, MD, ND, CVD) industries, producing high precision processing equipments (PCD/PCBN tools' grinders, vacuum brazing machines, laser cutting and engraving machines, laser processing center). We offer pre-machining services (PCD/PCBN laser cutting, tools brazing, chip breaker engraving, lapping and polishing, etc. ), and distribute world famous PCD/PCBN blanks. Also supply professional consultation and advanced technical services.

We are your only one stop factory in the field of ultra-hard materials processing with a good reputation in the global market.



Q & A


1. Q:Are you a factory or a trading company?
A:We are a professional manufacturer of ultra-hard material tools

2. Q:How long is your production time?
A:Generally it is 7-15 days after the order form is confirmed.
3.Q:What is the minimum quantity?
A:Any quantity order is available.

3. Q:Do you have inspection procedure before shipping?
A:Yes,we do 100% QC inspection
