30W Industrial Laser Engraving Machine PDC Laser Engraver China Supplier
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | 30W Industrial Laser Engraving Machine PDC Laser Engraver | Laser Source | Fiber |
|---|---|---|---|
| Application | PDC Engraving | After-sales Service Provided | Online Training |
| CNC Or Not | Yes | Cooling Mode | Water Cooling |
| Engraving Area | 26*26mm | Delivery Date | 45-60 Days |
| High Light | 30W Laser Engraving Machine,Industrial PDC Laser Engraver,PDC Fiber Laser Engraving Machine |
||
Product Description

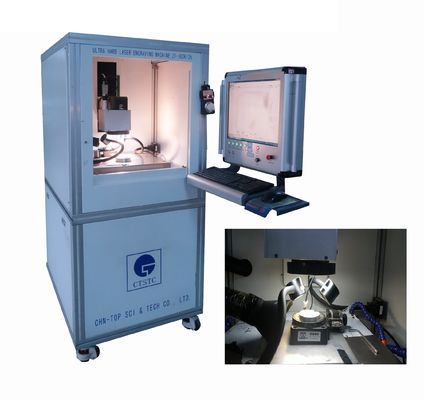

30W Industrial Laser Engraving Machine PDC Laser Engraver China Supplier
| Technology Parameters | |
| Laser Source | Fiber (German original laser) |
| Control Method | Software |
| Laser Power | 30W |
| Wave Length | 1064 |
| Laser Mode | TM01 |
| Beam Full Divergence | 1.5-2.0rad |
| Focus Adjusting Range | 0-30mm |
| Engraving Area | 26*26mm |
| Table Travel | 100*100*30mm |
| Positional Accuracy | ≤0.03mm |
| Location Mode | CCD Coaxial |
| Motion Control | 3 axis + optical 2 axis |
| Max Processing Depth | ≤1mm |
| Cooling Method | Air Cooling |
| Consumble | No |
ZT-JGDK26 Ultra-hard tools’ laser engraving machine is mainly used for precision chip breaker and positioned hole machining of ultra-hard tools(PCD, PCBN, Solid CBN, etc).
Components: Fiber laser; Coaxial monitoring system; Precision working table and CNC system.
Quick Details
1, CCD monitoring system, more accurate positioned.
2, German original laser source, more stable performance.
3, One button operating interface, more simple operation.
4, Cutting efficiency: 1-10um per layer;
5, Max cutting thickness:1mm;
6, 24 hours working, no consumables, laser maintenance free.
Package: Wooden Box
Delivery
Company Introduction
Originally founded by graduates from Tsinghua University, CHN-TOP SCI & TECH CO., LTD. is a high-tech enterprise specialized in diamond tools (PCD, PCBN, MD, ND, CVD) industries, producing high precision processing equipments (PCD/PCBN tools' grinders, vacuum brazing machines, laser cutting and engraving machines, laser processing center). We offer pre-machining services (PCD/PCBN laser cutting, tools brazing, chip breaker engraving, lapping and polishing, etc. ), and distribute world famous PCD/PCBN blanks. Also supply professional consultation and advanced technical services.
We are your only one stop factory in the field of ultra-hard materials processing with a good reputation in the global market.
Q & A
1. Q:Are you a factory or a trading company?
A:We are a professional manufacturer of ultra-hard material tools
2. Q:How long is your production time?
A:Generally it is 45-60 days after the order form is confirmed.
3.Q:What is the minimum quantity?
A:Any quantity order is available.
4. Q:Do you have inspection procedure before shipping?
A:Yes,we do 100% QC inspection
5. Q: Do you offer free training?
A: Yes, online training and buyer arrange someone to our factory training will be free for 4 days.
