6a2 Cup Sharped 150mm Sintered Diamond Wheels For Pcd / Pcbn Grinding Tools

Place of Origin CHINA
Brand Name CHN-TOP
Certification CE
Model Number 6A2 150*40*40*10*10mm
Minimum Order Quantity 1 SETS
Price Negotiable
Packaging Details Carton box
Delivery Time 5-15 working days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 3000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name 6A2 Cup Sharped Diamond Grinding Wheel Disc For PCD/PCBN Grinding Tools Customised Accepted
Guarranty 1 Year Model 2022 New
Shape Cup-shaped Application PCD/PCBN Grinding
Size 150 Diameter
High Light

pcbn sintered diamond wheels

,

150mm sintered diamond wheels

,

pcd diamond grinding cup wheel

Leave a Message
Product Description

6A2 Cup Sharped Diamond Grinding Wheel Disc For PCD/PCBN Grinding Tools





Product Name Custom size metal bond OG grinding wheel
Model CPTODTGH
Brand CTSTC
Size Customized
Body Materials Iron/Aluminum/stainless steel
Bond Metal
Abrasive Diamond
Grit 60#---320#
Technique Sintered
Tooth Profile Continouns/Segment/Groove
Usage Grinding, sharpening, polishing
Shape Flat Shape



We offer various grinding wheels for rough and fine grinding which are suitable for all grinder.





Application object:



• Turning tools, inserts, bites, end-mill, reamers

• Wood working: PCD router bit, cutter

• Electronics and optics industries: mono-crystal and natural diamond tools

• Printed circuit boards: V-cutter, edge beveling cutter
• PCD Band saw and circular saw blades
• PCBN tools for engine valve seat chamfering

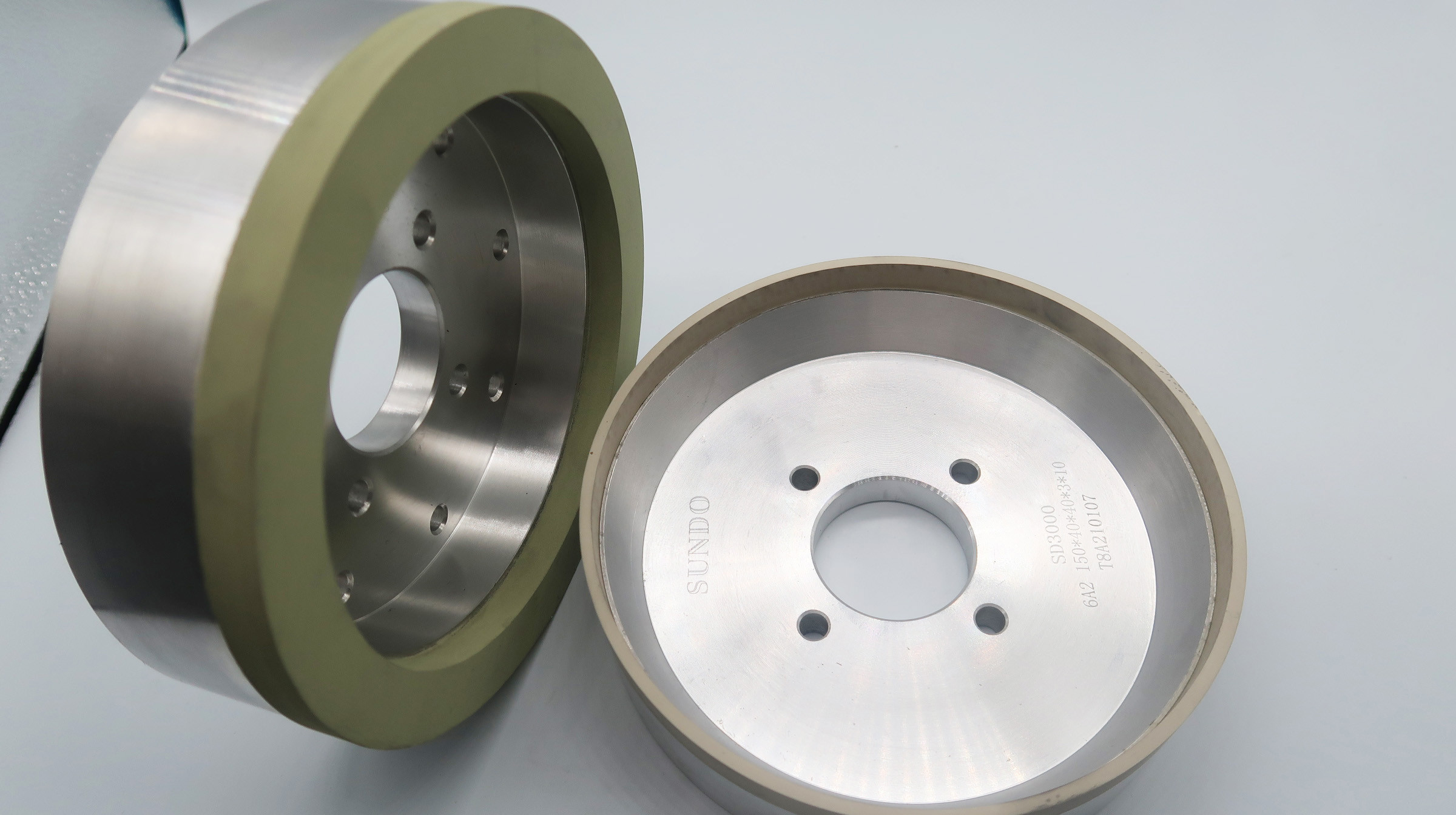

6a2 Cup Sharped 150mm Sintered Diamond Wheels For Pcd / Pcbn Grinding Tools 0



Quick Details



1. Good surface finish, minimized chipping on edge

2. Excellent cutting ability

3. Self-sharpening, greatly shorten grinding cycle time

4. Long wheel life, less dressing







Diamond grinding wheel size :

6a2 Cup Sharped 150mm Sintered Diamond Wheels For Pcd / Pcbn Grinding Tools 1

Type Size Width Grit size
6A2 150*40*40*5*8mm 5mm W5
6A2 150*40*40*10*8mm 10mm W5
6A2 150*40*40*15*8mm 15mm w5
6A2 150*40*40*20*8mm 20mm w5





6a2 Cup Sharped 150mm Sintered Diamond Wheels For Pcd / Pcbn Grinding Tools 2



How to order grinding wheel
1, Choose the right binder:
A,resin bonded grinding wheel : High bonding strength, elastic to a certain extent, poor heat resistance, coolant is not easy to enter.

B,vitrified bonded grinding wheel: The porosity is high, the coolant is easy to enter, and the dressing is easy.
C,electroplated bonded grinding wheel: There are many sand grains and high teeth exposure, so grinding efficiency is high.
D,metal bonded grinding wheel: Sand high bond strength, very wear - resistant, difficult to repair.

2,Choose the right abrasive:
A,Dianmond: It is the abrasive with the highest hardness. However, during the processing of iron workpiece, due to the heat generated by grinding, iron and diamond will react and destroy the diamond, so it is not suitable for the processing of iron workpiece.

B,CBN: Second only to diamond in hardness, suitable for grinding all kinds of steel above HRC40.

3,Choose the right abrasive grit size

4,Select the shape and size of the grinding wheel

5,Tell us what equipment you use to process what materials? including but not limited to:
A,device name
B,Equipment model
C,rubbing way
D,What kind of coolant
E,grinding allowance
F,amount of feed
G,Speed of grinding wheel



Our company is a high-tech enterprise specialized in diamond tools industries, producing high precision processing equipment, such as PCD/PCBN tool’s grinders, vacuum brazing machines, laser cutting and engraving machines, laser processing center.

We offer pre-machining service: PCD/PCBN laser cutting, tools brazing, chip breaker engraving, lapping and polishing, etc. And distribute world famous PCD/PCBN blanks. Also supply professional consultation and advanced technical service.
