Vitrified Bond 150 Mm Diamond And Cbn Wheels For Ultra Hard Material Grinding

Place of Origin CHINA
Brand Name CHN-TOP
Certification CE
Model Number 6A2 150*40*40*10*10mm
Minimum Order Quantity 1 SETS
Price Negotiable
Packaging Details Carton box
Delivery Time 5-15 working days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 3000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Vitrified Bond Grinding Wheel For Ultra Hard Material Grinding Size 150*40*40*10*10
Application PCD/PCBN Grinding Customised Acceptable
Brand CTSTC Shape Cup-Shaped
Grint As Required Abrasive Diamond
High Light

vitrified bond diamond and cbn wheels

,

150mm diamond and cbn wheels

,

ultra hard material sintered diamond wheels

Leave a Message
Product Description

Vitrified bond grinding wheel for ultra hard material grinding



We offer various grinding wheels for rough and fine grinding which are suitable for all grinder.





Product Name Custom size metal bond OG grinding wheel
Model CPTODTGH
Brand CTSTC
Size Customized
Body Materials Iron/Aluminum/stainless steel
Bond Metal
Abrasive Diamond
Grit 60#---320#
Technique Sintered
Tooth Profile Continouns/Segment/Groove
Usage Grinding, sharpening, polishing
Shape Flat Shape

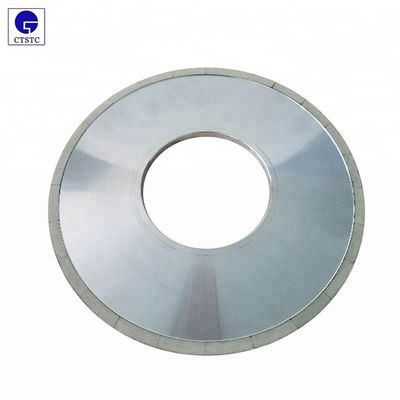

Vitrified Bond 150 Mm Diamond And Cbn Wheels For Ultra Hard Material Grinding 0









Advantages:
1.Precision control of geometric tolerance
2.Good Self-sharpening

3.High Working Efficiency

4.Good Elastic&Good Polishing Performance

5.Superior insert edge quality























Diamond grinding wheel size :

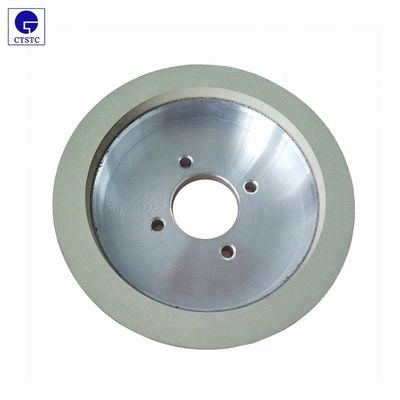

Vitrified Bond 150 Mm Diamond And Cbn Wheels For Ultra Hard Material Grinding 1

Type Size Width Grit size
6A2 150*40*40*5*8mm 5mm W5
6A2 150*40*40*10*8mm 10mm W5
6A2 150*40*40*15*8mm 15mm w5
6A2 150*40*40*20*8mm 20mm w5

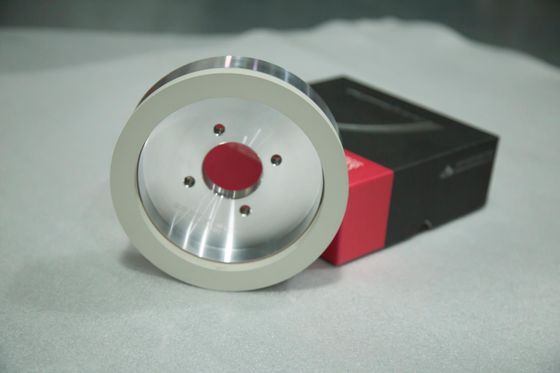

Vitrified Bond 150 Mm Diamond And Cbn Wheels For Ultra Hard Material Grinding 2



How to order grinding wheel
1, Choose the right binder:
A,resin bonded grinding wheel : High bonding strength, elastic to a certain extent, poor heat resistance, coolant is not easy to enter.

B,vitrified bonded grinding wheel: The porosity is high, the coolant is easy to enter, and the dressing is easy.
C,electroplated bonded grinding wheel: There are many sand grains and high teeth exposure, so grinding efficiency is high.
D,metal bonded grinding wheel: Sand high bond strength, very wear - resistant, difficult to repair.

2,Choose the right abrasive:
A,Dianmond: It is the abrasive with the highest hardness. However, during the processing of iron workpiece, due to the heat generated by grinding, iron and diamond will react and destroy the diamond, so it is not suitable for the processing of iron workpiece.

B,CBN: Second only to diamond in hardness, suitable for grinding all kinds of steel above HRC40.

3,Choose the right abrasive grit size

4,Select the shape and size of the grinding wheel

5,Tell us what equipment you use to process what materials? including but not limited to:
A,device name
B,Equipment model
C,rubbing way
D,What kind of coolant
E,grinding allowance
F,amount of feed
G,Speed of grinding wheel
