OEM Pcd Grinding Tools Hard Metal Cutters Tungsten Steel Cnc
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Name||Hard Metal Cutters Tungsten Steel Cnc Grinding Tools||Body Materials||Carbon Tungsten Alloy|
oem pcd grinding tools,
cnc pcd grinding tools,
pcd grinding tungsten carbide inserts

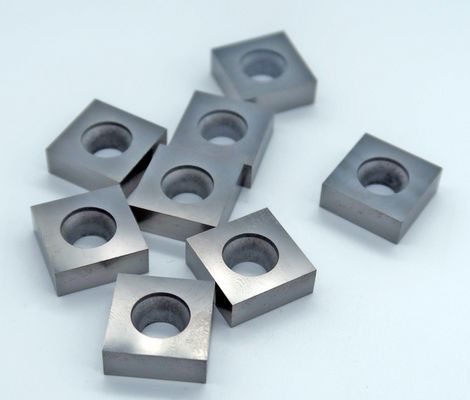

Hard Metal Cutters Tungsten Steel Cnc Grinding Tools
|Product Name||Tungsten alloy grinding inserts|
|Body Materials||Carbon tungsten alloy|
|Usage||External Turning Tool|
1.100% tungsten carbide raw material
2. Good wear and abrasive resistance
3. Precision ground and polished for aluminum using milling inserts
4. Better cost-effective CNC tools
5. R&D and production ability to keep up with market trends
6. Technical support ability to solve processing solutions for customers in all aspects
7.Adequate stock to ensure fast delivery
Tungsten steel is formed by pressing the powder into a billet, heating it to a certain temperature (sintering temperature) in a sintering furnace, and maintaining it for a certain period of time (heating time), and then cooling it down to obtain a tungsten steel material having desired properties.
The four basic stages of the tungsten steel sintering process:
Removal of the forming agent and the pre-firing stage, in which the sintered body undergoes the following changes
The removal of the molding agent, as the temperature increases, the molding agent gradually decomposes or vaporizes at the initial stage of sintering, thereby eliminating the sintered body. At the same time, the molding agent more or less carbon is added to the sintered body, and the carbon addition amount will follow the molding agent. The type, quantity, and sintering process vary.
The surface oxide of the powder is reduced. At the sintering temperature, hydrogen can reduce the oxides of cobalt and tungsten. If the molding agent is removed by vacuum and sintered, the carbon-oxygen reaction is not strong. The contact stress between the powder particles is gradually eliminated, the bonded metal powder begins to recover and recrystallize, surface diffusion begins to occur, and the strength of the compact is improved.
