Total 4KW Power Metal Fiber Laser Cutting Machine 380V For PCD / PCBN
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Total 4KW Power Metal Fiber Laser Cutting Machine For PCD/PCBN | Dimension | 1500*920*1640mm |
|---|---|---|---|
| Power | 380V | Cooling Mode | Water Cooling |
| Cnc Or Not | Yes | Guarranty | 2 Years |
| Application | PCD/PCBN Cutting | Condition | New |
| Model | 2022 Mode | After-sales Service Provided | Engineers Available To Service Machinery Overseas |
| High Light | 4KW Metal Fiber Laser Cutting Machine,380V Metal Fiber Laser Cutting Machine,PCD Metal Fiber Laser Cutting Machine |
||
Product Description

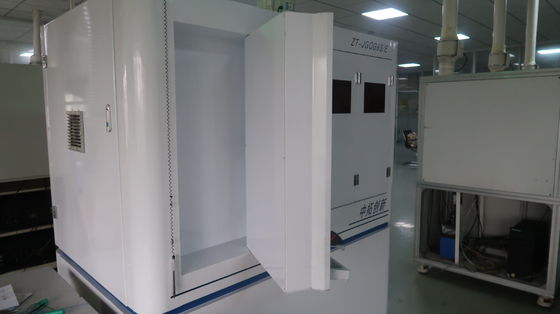

Total 4KW Power Metal Fiber Laser Cutting Machine For PCD/PCBN
The fiber laser of ZT-JG6S machine adopts the maintenance-free type, which saves the regular cleaning of the resonator and the calibration and maintenance of the optical path in the daily use, the fiber laser cutting machine is more environmentally friendly and simple and convenient.
Mainly suitable for cutting ultra-hard materials ( PCD, PCBN, Cemented Carbide, Ceramics). It can also cut some materials that can not be machined by wire cutting. The cutting surface is fine, with high cutting speed, precision and working efficiency. It is more superior than normal YAG pump laser cutting machine by 2 times.
Design Features:
• Marble base table, not affected by temperature and humidity, stable and not easy to deform.
• Adopts advanced fiber laser module, more stable, more precise, more durable and
maintenance-free.
• The self-developed laser source, minimum after-sales service cost.
• High efficiency, high precision cutting, thin cutting kerf, saves the material.
• 3 times faster cutting speed than YAG, with smaller heat-affected zone.
• Two axis of the worktable are driven by servo motor, closed-loop control, repositioning accuracy :s:0.005mm.
• 24 hours working, processing any 2D graphics, software supports automatic model and manual model, equipped with CCD monitor.
• Z axis step motor drive and A axis as rotary axis, can process the material with relief angle.
Technical Parameters:
|
Power supply requirements |
380V50Hz, Five-core four-square power cord |
|
Working environment |
Room temperature 20~40℃, humidity ≦60%, away from oil source |
|
Cooling Mode of Machine |
Adopt dual temperature cooling system , laser cutting head cooled by room temperature water. Laser cooled by 22℃cooling circulating water, and for manufacturing workpiece cooled by purify oil-free compressed air. |
|
Laser Source |
Fiber laser |
|
Duty Ratio |
1~100% |
|
Frequency |
1-2000 Hz |
|
Power percentage |
1%~100% |
|
Four Axis stroke |
300*300*50mm A-Axis 0±30° |
|
Maximun power output |
3000W |
|
Positioning accuracy |
≦± 0.005mm |
|
Repeat positioning accuracy |
≦± 0.005mm |
Q: Are you trading company or manufacturer ?
A: We are manufactory for PCD,CBN diamond tools equipments and service, we have our own R&D team and production workshop. We can develop our customers' unique products according to their needs.
Q: How about your after-sales system?
A: We have a comprehensive after-sales system, which can provide one-on-one online video service according to the needs of customers, and one-on-one service to solve customers' worries.
Q: How about the cutting thickness and width of Laser cutting machine?
A: 1), Cutting thickness, single-sided cutting maximum thickness of 4-5mm, double-sided cutting maximum thickness of 8 10mm.
2), Slit width: 0.05-0.15mm, accuracy can reach 0.01mm.
