Metal 2.0mm Thickness CNC Fiber Laser Cutting Machine Ultra Hard 380V

Place of Origin CHINA
Brand Name CTSTC
Certification CE
Model Number ZT-JGQG6S
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details 1500*920*1640mm
Delivery Time 45-60 days after prepayment
Payment Terms T/T L/C D/A D/P
Supply Ability 30 SETS PER MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Certificate CE, FDA Product Name CNC Fibre Laser Ultra Hard Material Cutter With Competitive Price
Laser Source Fiber Dimension 1500*920*1640mm
Power 380V Cooling Mode Water Cooling
Cnc Or Not Yes Guarranty 2 Years
High Light

2.0mm CNC Fiber Laser Cutting Machine


Ultra Hard CNC Fiber Laser Cutting Machine


CNC Fiber Laser Cutting Machine 380V

Leave a Message
Product Description


CNC Fibre Laser Ultra Hard Material Cutter With Competitive Price


ZT-JGQG6S is a new model of laser cutting machine. The self-developed laser source makes better cutting
performance, completely replaced the traditional YAG cutting machine. Higher cutting speed and thinner
cutting kerf (2.0mm thickness PCD, the cutting kerf is 0.06-0.08mm), smooth cutting surface, running
steady and maintenance-free. Suitable for cutting PCD/PCBN/CVD/Sapphire/PDC/Cemented Carbide/
Ceramics and other precious and ultra-hard materials. Especially, it has incomparable advantages in cutting
low content PCBN.

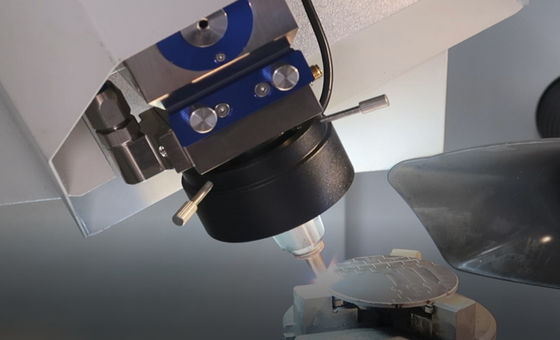

Metal 2.0mm Thickness CNC Fiber Laser Cutting Machine Ultra Hard 380V 0


Design Features:

• Marble base table, not affected by temperature and humidity, stable and not easy to deform.

• Adopts advanced fiber laser module, more stable, more precise, more durable and


• The self-developed laser source, minimum after-sales service cost.

• High efficiency, high precision cutting, thin cutting kerf, saves the material.

• 3 times faster cutting speed than YAG, with smaller heat-affected zone.

• Two axis of the worktable are driven by servo motor, closed-loop control, repositioning accuracy :s:0.005mm.

• 24 hours working, processing any 2D graphics, software supports automatic model and manual model, equipped with CCD monitor.

• Z axis step motor drive and A axis as rotary axis, can process the material with relief angle.

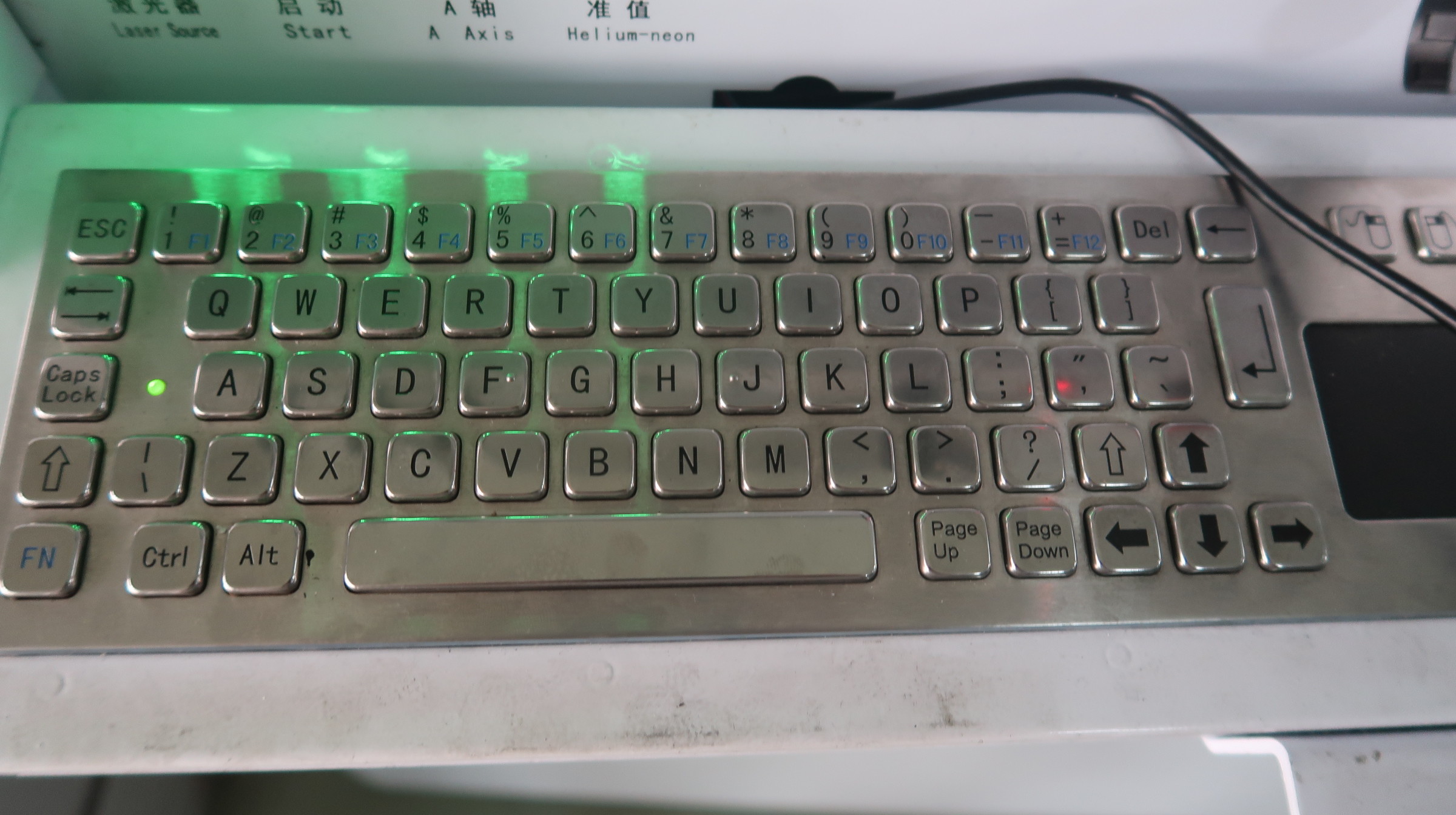

Metal 2.0mm Thickness CNC Fiber Laser Cutting Machine Ultra Hard 380V 1


Metal 2.0mm Thickness CNC Fiber Laser Cutting Machine Ultra Hard 380V 2





Technical Parameters:


Power supply requirements

380V50Hz, Five-core four-square power cord

Working environment

Room temperature 20~40℃, humidity ≦60%, away from oil source

Cooling Mode of Machine

Adopt dual temperature cooling system ,

laser cutting head cooled by room temperature water. Laser cooled by 22℃cooling circulating water, and for manufacturing workpiece cooled by purify oil-free compressed air.

Laser Source

Fiber laser

Duty Ratio



1-2000 Hz

Power percentage


Four Axis stroke

300*300*50mm A-Axis 0±30°

Maximun power output


Positioning accuracy

≦± 0.005mm

Repeat positioning accuracy

≦± 0.005mm



To ensure the normal use of laser cutting machine, it is necessary to carry out daily maintenance and maintenance of the equipment; regularly to the laser heat dissipation system reasonable dust; regularly to the X axis, Y axis of the limit switch is sensitive.


Daily maintenance and maintenance

1. Check the operation of the laser carefully before turn on daily, check the equipment button indicator lamp, stop the ammonium button key switch is not normal.

2. check the circulating water level of water cooler water tank, if not

added in time.

3. Check protective lens for damage before daily cutting.

4. Clean up the dust and debris inside the worktable after each shift is completed.

5. After one year of using , the machine tool and worktable should be adjusted regularly to ensure the cutting accuracy of the machine tool

If the equipment is not in use for a long time, please apply butter to the moving parts and rust-prone parts of the machine tool to prevent rust.
