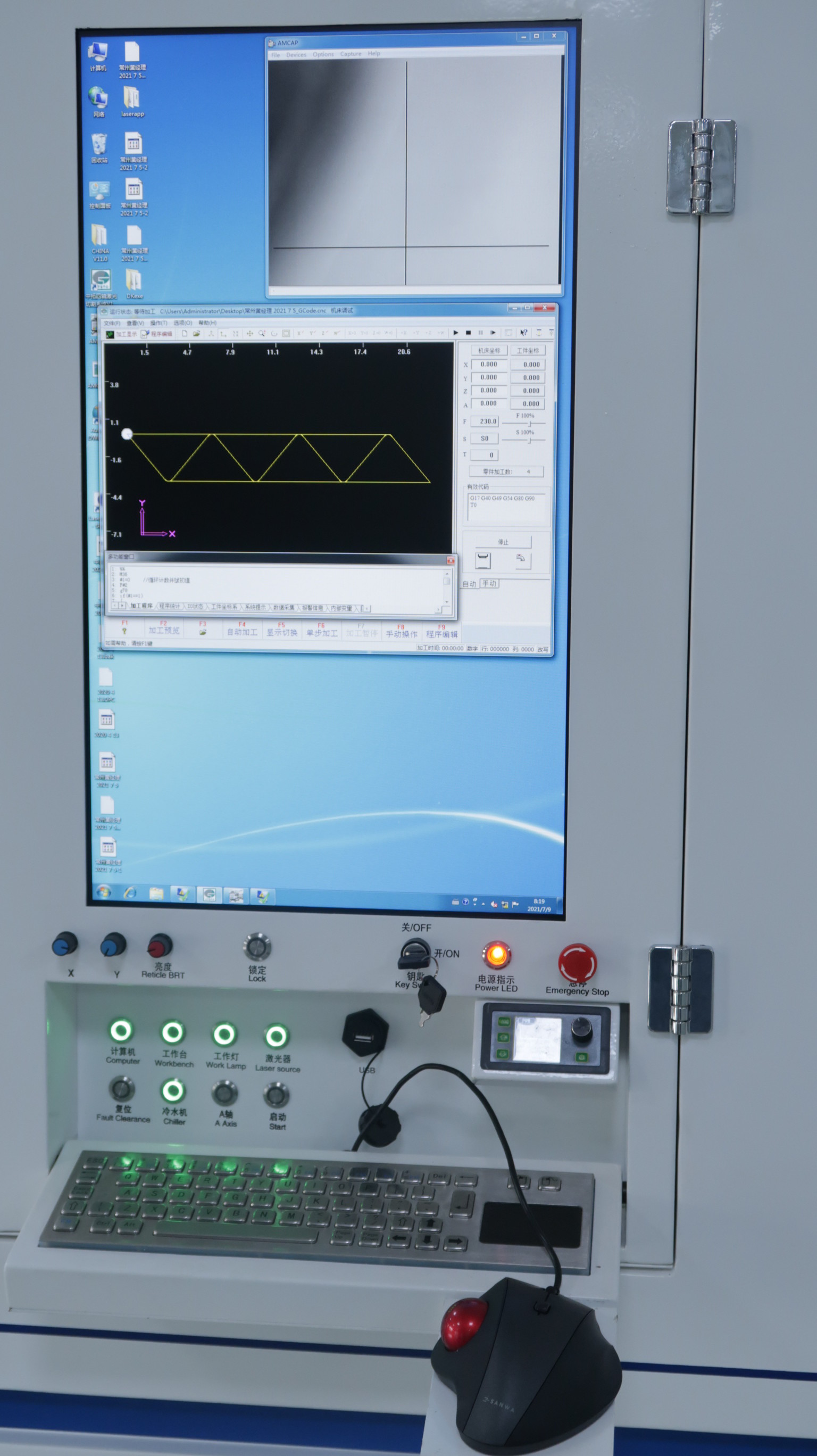

CTSTC ZT-JGQG6S CNC Fiber Laser Cutter Suitable For Ultra Hard Materials
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | PCD/PCBN Cutter | Model | 2022 New |
|---|---|---|---|
| Certificate | CE, FDA | Product Name | CNC Fibre Laser Ultra Hard Material Cutter With Competitive Price |
| Laser Source | Fiber | Dimension | 1500*920*1640mm |
| Power | 380V | After-sales Service | 2 Years |
| High Light | CE CNC Fiber Laser Cutter,5 Core CNC Fiber Laser Cutter,380V CNC Fiber Laser Cutter |
||
Product Description
CNC Fibre Laser Ultra Hard Material Cutter With Competitive Price
The fiber laser of ZT-JG6S machine adopts the maintenance-free type, which saves the regular cleaning of the resonator and the calibration and maintenance of the optical path in the daily use, the fiber laser cutting machine is more environmentally friendly and simple and convenient.
Mainly suitable for cutting ultra-hard materials ( PCD, PCBN, Cemented Carbide, Ceramics). It can also cut some materials that can not be machined by wire cutting. The cutting surface is fine, with high cutting speed, precision and working efficiency. It is more superior than normal YAG pump laser cutting machine by 2 times.
Technical Parameters:
|
Power supply requirements |
380V50Hz, Five-core four-square power cord |
|
Working environment |
Room temperature 20~40℃, humidity ≦60%, away from oil source |
|
Cooling Mode of Machine |
Adopt dual temperature cooling system , laser cutting head cooled by room temperature water. Laser cooled by 22℃cooling circulating water, and for manufacturing workpiece cooled by purify oil-free compressed air. |
|
Laser Source |
Fiber laser |
|
Duty Ratio |
1~100% |
|
Frequency |
1-2000 Hz |
|
Power percentage |
1%~100% |
|
Four Axis stroke |
300*300*50mm A-Axis 0±30° |
|
Maximun power output |
3000W |
|
Positioning accuracy |
≦± 0.005mm |
|
Repeat positioning accuracy |
≦± 0.005mm |
Originally founded by graduates from Tsinghua University, CHN-TOP SCI & TECH CO., LTD. is a
high-tech enterprise specialized in diamond tools (PCD, PCBN, MD, ND, CVD) industries, producing
high precision processing equipments (PCD/PCBN tools'grinders, vacuum brazing machines, laser
cutting and engraving machines, laser processing center). We offer pre-machining services (PCD/
PCBN laser cutting, tools brazing, chip breaker engraving, lapping and polishing, etc. ), and distribute
world famous PCD/PCBN blanks. Also supply professional consultation and advanced technical
services. We are your only one stop factory in the field of ultra-hard materials processing with a
good reputation in the global market.
