Four Axis Stroke Fibre Laser Cutting Machine, 3000W PCD/PCBN Cutter
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | PCD/PCBN Cutter | Model | 2022 New |
|---|---|---|---|
| Certificate | CE, FDA | Product Name | Fibre Laser Cutting Machine For Ultra Hard Material Cutting With 2 Years After-Sales Service |
| Laser Source | Fiber | Dimension | 1500*920*1640mm |
| Power | 380V | After-sales Service | 2 Years |
| High Light | Four Axis CNC Fibre Laser Cutting Machine,PCD Fibre Laser Cutting Machine,3000W Fibre Laser Cutting Machine |
||
Product Description
Fibre Laser Cutting Machine For Ultra Hard Material Cutting With 2 Years After-Sales Service

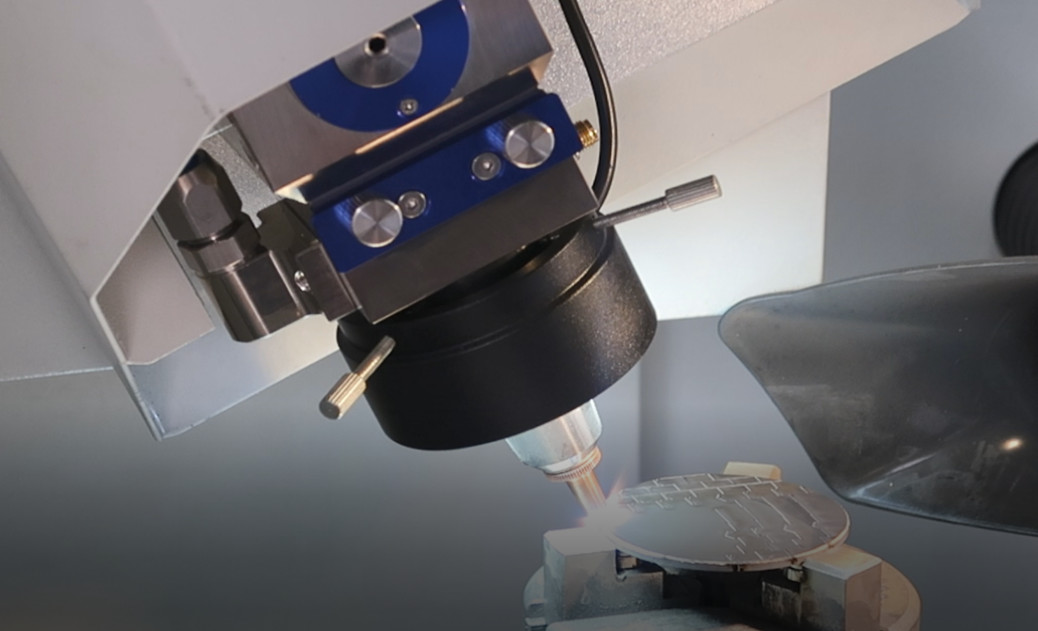

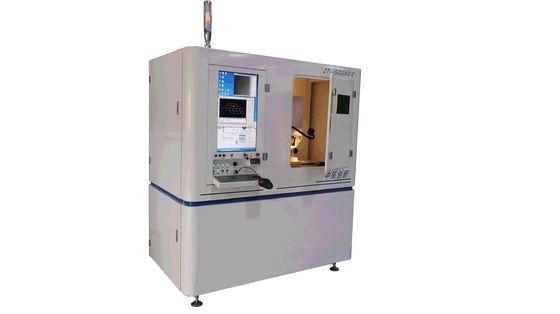

ZT-JGQG6S is a new model of laser cutting machine. The self-developed laser source makes better cutting performance, completely replaced the traditional YAG cutting machine. Higher cutting speed and thinner cutting kerf (2.0mm thickness PCD, the cutting kerf is 0.06-0.08mm), smooth cutting surface, running steady and maintenance-free. Suitable for cutting PCD/ PCBN/ CVD/ Sapphire/ PDC/ Cemented Carbide/Ceramics and other precious and ultra-hard materials. Especially, it has incomparable advantages in cutting low content PCBN.
Technical Parameters:
|
Power supply requirements |
380V50Hz, Five-core four-square power cord |
|
Working environment |
Room temperature 20~40℃, humidity ≦60%, away from oil source |
|
Cooling Mode of Machine |
Adopt dual temperature cooling system , laser cutting head cooled by room temperature water. Laser cooled by 22℃cooling circulating water, and for manufacturing workpiece cooled by purify oil-free compressed air. |
|
Laser Source |
Fiber laser |
|
Duty Ratio |
1~100% |
|
Frequency |
1-2000 Hz |
|
Power percentage |
1%~100% |
|
Four Axis stroke |
300*300*50mm A-Axis 0±30° |
|
Maximun power output |
3000W |
|
Positioning accuracy |
≦± 0.005mm |
|
Repeat positioning accuracy |
≦± 0.005mm |
Originally founded by graduates from Tsinghua University, CHN-TOP SCI & TECH CO., LTD. is a
high-tech enterprise specialized in diamond tools (PCD, PCBN, MD, ND, CVD) industries, producing
high precision processing equipments (PCD/PCBN tools'grinders, vacuum brazing machines, laser
cutting and engraving machines, laser processing center). We offer pre-machining services (PCD/
PCBN laser cutting, tools brazing, chip breaker engraving, lapping and polishing, etc. ), and distribute
world famous PCD/PCBN blanks. Also supply professional consultation and advanced technical
services. We are your only one stop factory in the field of ultra-hard materials processing with a
good reputation in the global market.
