Software Extrocontrol 1.5kW Fiber Laser Engraving Machines 220V For Ultra Hard Material

  • Software Extrocontrol 1.5kW Fiber Laser Engraving Machines 220V For Ultra Hard Material
  • Software Extrocontrol 1.5kW Fiber Laser Engraving Machines 220V For Ultra Hard Material
  • Software Extrocontrol 1.5kW Fiber Laser Engraving Machines 220V For Ultra Hard Material
  • Software Extrocontrol 1.5kW Fiber Laser Engraving Machines 220V For Ultra Hard Material
  • Software Extrocontrol 1.5kW Fiber Laser Engraving Machines 220V For Ultra Hard Material
  • Software Extrocontrol 1.5kW Fiber Laser Engraving Machines 220V For Ultra Hard Material
Place of Origin CHINA
Brand Name CTSTC
Model Number ZT-JGDK26A
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details 1280*950*1900mm
Delivery Time 45-60 days after prepayment
Payment Terms T/T, D/P, D/A, L/C
Supply Ability 30 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Certification CE Product Name ZT-JGDK26A Laser Engraving Machines
Model 2022 New Control Method Software Extrocontrol
Laser Source Fiber Laser Application Ultra Hard Material Engraving
After-sales Service Provided Engineers Available To Service Machinery Overseas Cooling Mode Air Model
High Light

1.5kW Fiber Laser Engraving Machines

,

220V Fiber Laser Engraving Machines

,

CE Fiber Laser Engraving Machines
Leave a Message
Product Description

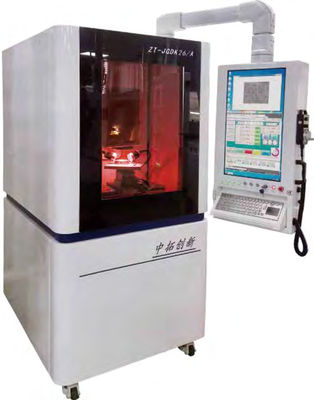

ZT-JGDK26A Laser Engraving Machines



ZT-JGDK26A laser engraving machine is an updated version of ZT-JGDK26, once loaded, volume production, automatic processing, improves efficiency and saves cost.

Software Extrocontrol 1.5kW Fiber Laser Engraving Machines 220V For Ultra Hard Material 0





Design Features:



• Adopts advanced fiber laser module, more stable, more precise, more

durable and maintenance-free.

• Specially designed laser source, makes better machining surface roughness.

• CCD coaxial positioning system, high resolution digital camera.

• High precision servo closed-loop worktable, precise positioning.

• Laser automatic focusing system, focal length precisely locates the work piece surface.

• One button operating interface, easy operation.

• 24 hours working, no consumables and maintenance-free.



Software Extrocontrol 1.5kW Fiber Laser Engraving Machines 220V For Ultra Hard Material 1Software Extrocontrol 1.5kW Fiber Laser Engraving Machines 220V For Ultra Hard Material 2



Software Extrocontrol 1.5kW Fiber Laser Engraving Machines 220V For Ultra Hard Material 3





Technical Parameters
Laser Source Fiber
Control Method Software Extrocontrol
Laser Power 30W
Laser Supply 220V
Wave Length 1064nm
Total Power 1.5kW
Laser Mode TM01
Beam Full Divergence 1.5-2.0rad
Engraving Area ≤26*26mm
Table Travel 220*200*100mm
Table Area 180*180mm
Repositioning Accuracy ≤0.005mm
Location Mode CCD Coaxial
Motion Control Mechanical 4 axis + optical 2 axis
Processing Speed 1-10um/layer
Max Engraving Depth ≤1.5mm
Cooling Method Air Cooling
Laser Focusing System Automatic
Dimension 1280*950*1900(L*W*H)
Net Weight 520kgs
