380V Fiber Laser Cutting Machine For PCD / PCBN

Place of Origin CHINA
Brand Name CTSTC
Certification CE
Model Number ZT-JGQG6S/E
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details 1500*920*1640mm
Delivery Time 45-60 days after prepayment
Payment Terms T/T L/C D/A D/P
Supply Ability 30 SETS PER MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Application Cutting PCD/PCBN Model 2022 New
Certificate CE, FDA Product Name ZT-JGQG6S/E Fiber Laser Cutting Machine
Key Word PCD/PCBN Cutting Laser Source Fiber
Dimension 1500*920*1640mm Power 380V
High Light

PCD Fiber Laser Cutting Machine


380V PCBN Fiber Laser Cutting Machine


Fiber Laser Cutter For PCD

Leave a Message
Product Description


ZT-JGQG6S/E Fiber Laser Cutting Machine


The fiber laser of ZT-JG6S machine adopts the maintenance-free type, which saves the regular cleaning of the resonator and the calibration and maintenance of the optical path in the daily use, the fiber laser cutting machine is more environmentally friendly and simple and convenient.

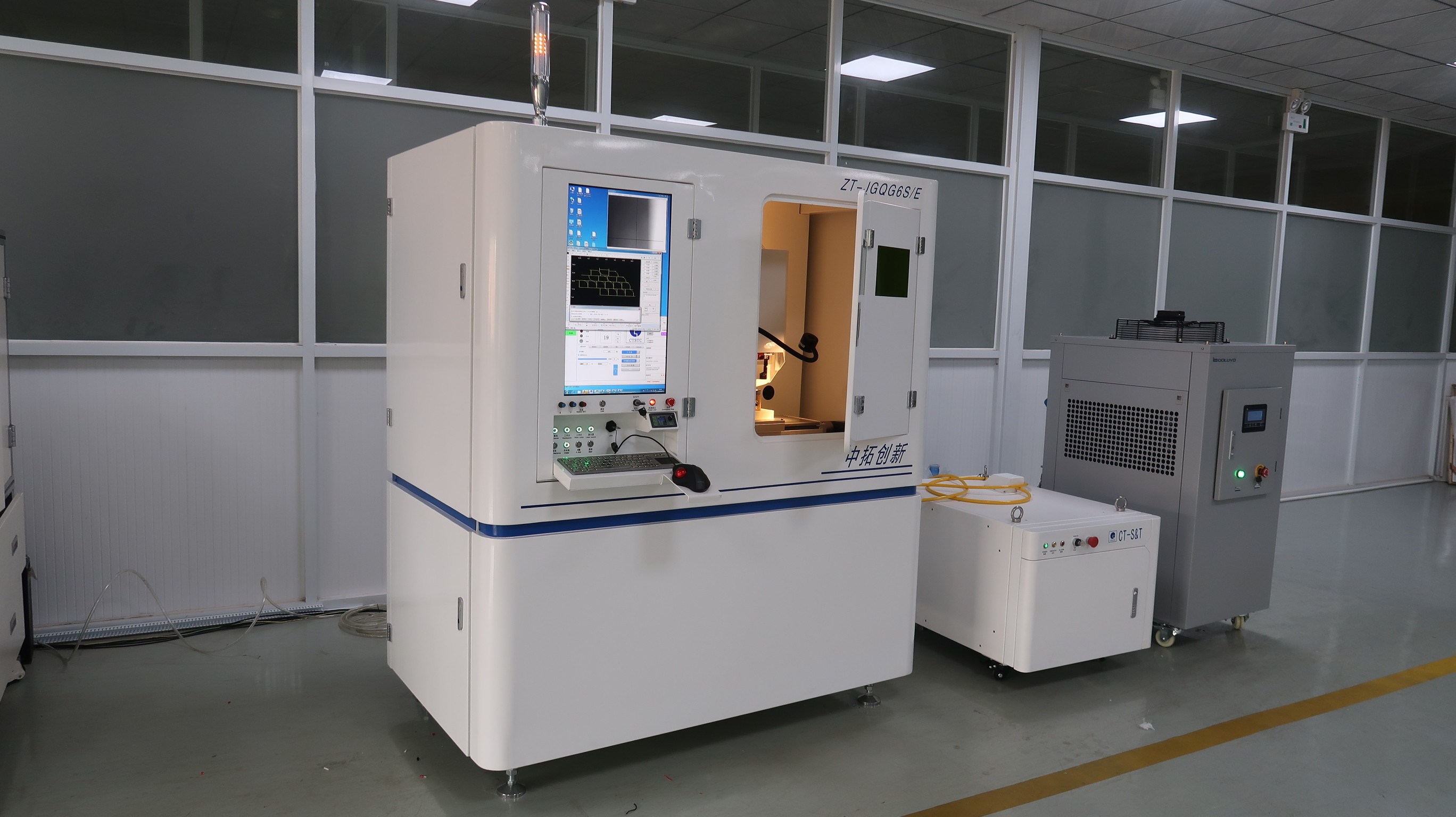

380V Fiber Laser Cutting Machine For PCD / PCBN 0




Mainly suitable for cutting ultra-hard materials ( PCD, PCBN, Cemented Carbide, Ceramics). It can also cut some materials that can not be machined by wire cutting. The cutting surface is fine, with high cutting speed, precision and working efficiency. It is more superior than normal YAG pump laser cutting machine by 2 times.


380V Fiber Laser Cutting Machine For PCD / PCBN 1380V Fiber Laser Cutting Machine For PCD / PCBN 2

380V Fiber Laser Cutting Machine For PCD / PCBN 3

380V Fiber Laser Cutting Machine For PCD / PCBN 4



Technical Parameters:


Power supply requirements

380V50Hz, Five-core four-square power cord

Working environment

Room temperature 20~40℃, humidity ≦60%, away from oil source

Cooling Mode of Machine

Adopt dual temperature cooling system ,

laser cutting head cooled by room temperature water. Laser cooled by 22℃cooling circulating water, and for manufacturing workpiece cooled by purify oil-free compressed air.

Laser Source

Fiber laser

Duty Ratio



1-2000 Hz

Power percentage


Four Axis stroke

300*300*50mm A-Axis 0±30°

Maximun power output


Positioning accuracy

≦± 0.005mm

Repeat positioning accuracy

≦± 0.005mm
