30W Fiber Laser Engraver System For PCD PCBN Diamond Tools

Place of Origin China
Brand Name CTSTC
Certification CE
Model Number ZT-JGDK26
Minimum Order Quantity 1set
Price $1.00
Packaging Details Wooden case
Delivery Time within 60 days
Payment Terms L/C, D/P, T/T
Supply Ability 30 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model No. ZT-JGDK26 Brand CHN-TOP
Laser Type Fiber Laser Material Laser
Cutting Efficienty 1-10um
High Light

30W fiber laser engraver

,

PCD PCBN fiber laser engraver

You can tick the products you need and communicate with us in the message board.
Laser Source Fiber (German original laser)
Control Method Software
Laser Power 30W
Wave Length 1064
Laser Mode TM01
Beam Full Divergence 1.5-2.0rad
Focus Adjusting Range 0-30mm
Location Mode CCD Coaxial
Motion Control 3 axis + optical 2 axis
Leave a Message
Laser Source Fiber (German original laser)
Product Description

PCD DIAMOND TOOL LASER FIBER MACHINE LASER ENGRAVING MACHINE FOR PCD PCBN DIAMOND TOOLS , LASER CUTTING MACHINE FOR PCBN



ZT-JGDK26 is a special and fiber laser cutting machine which focus on chip breaker

Quick Details

1, CCD monitoring system
2, German original laser source
3, One button operating interface
4, Cutting efficiency: 1-10um per layer;
5, Max cutting thickness:1mm;
6, 24 hours working, no consumables, laser maintenance free.



Description:

ZT-JGDK26 Ultra-hard tools’ laser engraving machine is mainly used for precision chip breaker and positioned hole machining of ultra-hard tools.

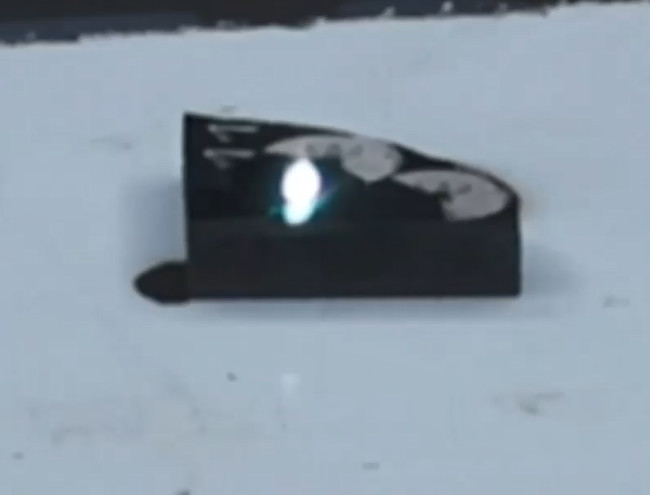

30W Fiber Laser Engraver System For PCD PCBN Diamond Tools 0









Design Features

  • CCD Monitorning system , more accurate positioned
  •
  • German orginal laser source, more stable performance
  •
  • One button operation interface, more simple operation
  •
  • Cutting efficiency:1-10um per layer
  •
  • Max cutting thickness: 1mm
  •
  • 24 hours working, no consumables, laser maintenance free

























Specifications:



1.Main Components:Laser

Laser Type Fiber laser
Laser Power Germany import
Wave Length 1064



2.Main Components:Monitor system

CCD Coaxial monitoring sytem
Interface Once buttom
Cutting thickness 1mm






Specifications:

Technology Parameters
Laser Source Fiber (German original laser)
Control Method Software
Laser Power 30W
Wave Length 1064
Laser Mode TM01
Beam Full Divergence 1.5-2.0rad
Focus Adjusting Range 0-30mm
Engraving Area 26*26mm
Table Travel 100*100*30mm
Positional Accuracy ≤0.03mm
Location Mode CCD Coaxial
Motion Control 3 axis + optical 2 axis
Max Processing Depth ≤1mm
Cooling Method Air Cooling
Consumable No



30W Fiber Laser Engraver System For PCD PCBN Diamond Tools 1

30W Fiber Laser Engraver System For PCD PCBN Diamond Tools 2

30W Fiber Laser Engraver System For PCD PCBN Diamond Tools 3

30W Fiber Laser Engraver System For PCD PCBN Diamond Tools 4

30W Fiber Laser Engraver System For PCD PCBN Diamond Tools 5

30W Fiber Laser Engraver System For PCD PCBN Diamond Tools 6



FAQ
Q: Are you trading company or manufacturer ?
A: We are manufactory for PCD,CBN diamond tools equipments and service, we have our own R&D

team and production workshop. We can develop our customers' unique products according to their needs.

Q: How long is your delivery time?
A: Generally it is 2-3 days for CNC diamonds tools machining, and 45-60 days for machines.

Q: How about your after-sales system?
A: We have a comprehensive after-sales system, which can provide one-on-one online video service

according to the needs of customers, and one-on-one service to solve customers' worries.

Q: How about your delivery date for PCD/PCBN blank?
A: 1), PCD/PCBN Blank, we have signed a Chinese agency agreement with international big brands,

customers do not need to worry about genuine and delivery problems;
2), We can provide a wide range of products with PCD/ PCBN Blank, customers can choose goods according

to different needs, we also have self-developed domestic PCD with high quality, the price is very competitive.

Q: How about the cutting thickness and width of Laser cutting machine?
A: 1), Cutting thickness, single-sided cutting maximum thickness of 4-5mm, double-sided cutting maximum

thickness of 8 10mm.
2), Slit width: 0.05-0.15mm, accuracy can reach 0.01mm.
