Air Cooling 30w Fiber Laser Engraver 1064nm For Chip Breaker
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | ZT-JGDK26 | Fiber Type | Fiber Laser |
|---|---|---|---|
| Application | PCD PCBN Diamond Laser Engraving | PCD Material | PCD Blank ,rotary Tools |
| High Light | 30w fiber laser engraver,1064nm fiber laser engraver |
||
You can tick the products you need and communicate with us in the message board.
| Laser Source | Fiber (German original laser) | |
|---|---|---|
| Control Method | Software | |
| Laser Power | 30W | |
| Wave Length | 1064 | |
| Laser Mode | TM01 | |
| Beam Full Divergence | 1.5-2.0rad | |
| Focus Adjusting Range | 0-30mm | |
| Location Mode | CCD Coaxial | |
| Motion Control | 3 axis + optical 2 axis |
Product Description
LASER ENGRAVING MACHINE FOR CHIP BREAKER CNC FIBER LASER ENGRAVING MACHINE LASER CUTTING MACHINE FOR PCD PCBN TOOLS
ZT-JGDK26 Ultra-hard tools’ laser engraving machine is mainly used for precision chip breaker and positioned hole machining of ultra-hard tools (PCD, PCBN, SOLID CBN, etc.)
Components: FIBER LASER, COAXIAL MONITORING SYSTEM, PRECISION working table and CNC system
Design Features
- CCD Monitorning system , more accurate positioned
- German orginal laser source, more stable performance
- One button operation interface, more simple operation
- Cutting efficiency:1-10um per layer
- Max cutting thickness: 1mm
- 24 hours working, no consumables, laser maintenance free
Technical Parameters:
1.Main Components:Laser
| Laser Type | Fiber laser |
| Laser Power | Germany import |
| Wave Length | 1064 |
2.Main Components:Monitor system
| CCD | Coaxial monitoring sytem |
| Interface | Once buttom |
| Cutting thickness | 1mm |

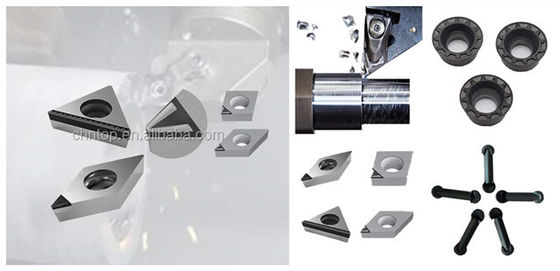

Application
FAQ
Q: Are you trading company or manufacturer ?
A: We are manufactory for PCD,CBN diamond tools equipments and service, we have our own R&D
team and production workshop. We can develop our customers' unique products according to their needs.
Q: How long is your delivery time?
A: Generally it is 2-3 days for CNC diamonds tools machining, and 45-60 days for machines.
Q: How about your after-sales system?
A: We have a comprehensive after-sales system, which can provide one-on-one online video service
according to the needs of customers, and one-on-one service to solve customers' worries.
Q: How about your delivery date for PCD/PCBN blank?
A: 1), PCD/PCBN Blank, we have signed a Chinese agency agreement with international big brands,
customers do not need to worry about genuine and delivery problems;
2), We can provide a wide range of products with PCD/ PCBN Blank, customers can choose goods according
to different needs, we also have self-developed domestic PCD with high quality, the price is very competitive.
Q: How about the cutting thickness and width of Laser cutting machine?
A: 1), Cutting thickness, single-sided cutting maximum thickness of 4-5mm, double-sided cutting maximum
thickness of 8 10mm.
2), Slit width: 0.05-0.15mm, accuracy can reach 0.01mm.
