Multifunctional Laser Diamond Cutting Machine PCD PCBN Large Size

  • Multifunctional Laser Diamond Cutting Machine PCD PCBN Large Size
  • Multifunctional Laser Diamond Cutting Machine PCD PCBN Large Size
  • Multifunctional Laser Diamond Cutting Machine PCD PCBN Large Size
  • Multifunctional Laser Diamond Cutting Machine PCD PCBN Large Size
Place of Origin China
Brand Name CTSTC
Certification CE
Model Number ZT-JGQG6S/E
Minimum Order Quantity 1set
Price Negotiable
Packaging Details Wooden case
Delivery Time 5-8days
Payment Terms L/C, D/P, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application Laser Cutting
High Light

Multifunctional laser diamond cutting machine

,

PCD PCBN laser diamond cutting machine

,

PCD PCBN fiber laser cutting machine
Leave a Message
Product Description

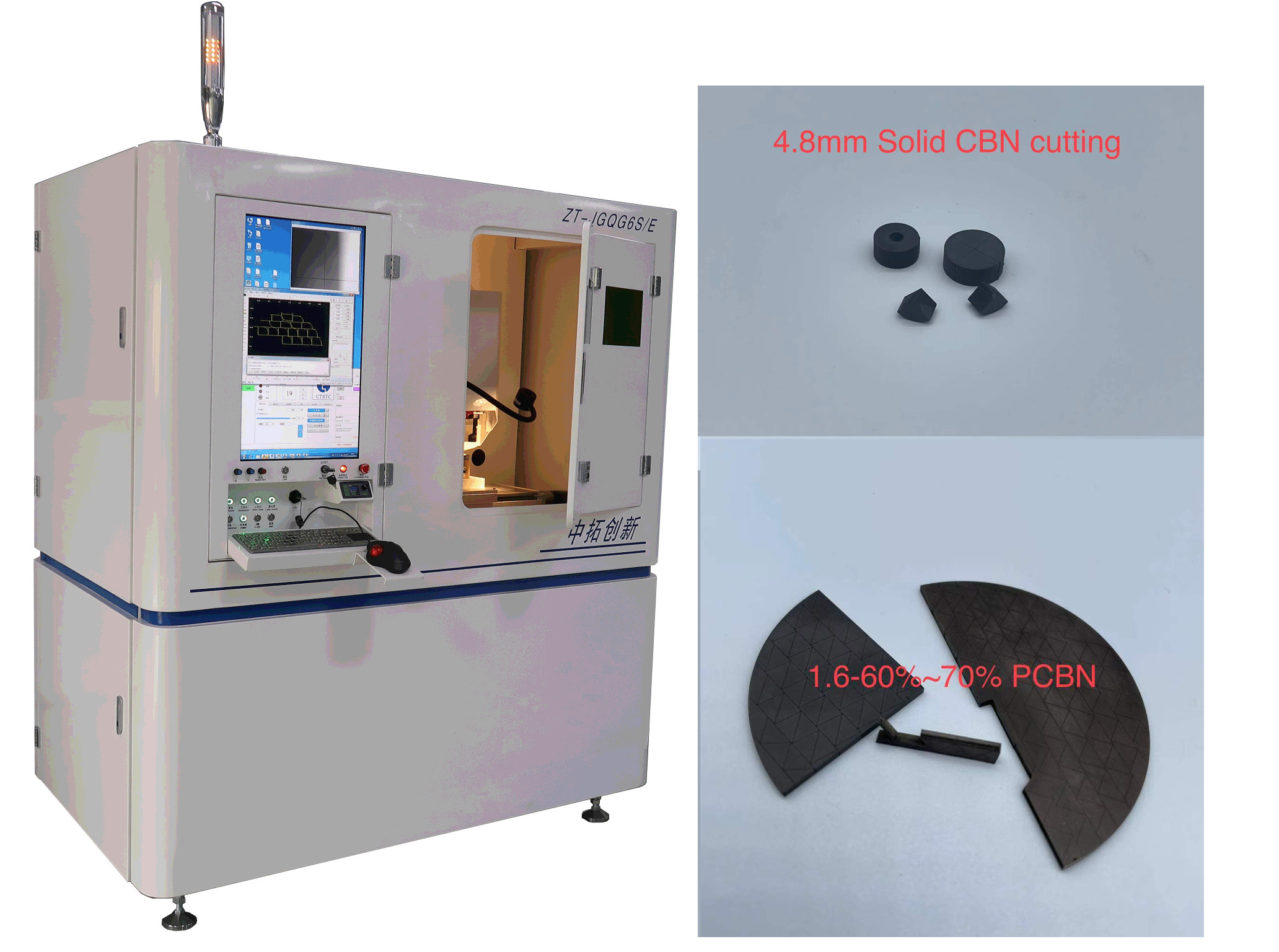

Diamond Cutting Large Laser Cutting Machine ZT-JGQG6S/E



Description:

Based on marketing and customized requirements, the economic fiber laser cutting machine launched. It replace by expensive fiber laser and past YAG laser. And widely used for PCD/ PCBN/ CVD/ Sapphire/ PDC/ND/MD/ Carbide/ Ceramic material high precision cutting.

Integrated design is better for delivery, easy to operate, greatly shorten the testing time

Equip large-size, multi-functional display to make operation more convenient



Quick Details

1. Adopt advanced fiber laser source modular

2. Very competitive price

3. Cutting width is :0.05-0.06mm

4. Special optical laser head, Stable laser source

5. Working 7*24 hours



Specifications:

Technology Parameters
Laser Source Fiber
Control system X/Y/Z high precision worktable with rotary A axis
Software system Based on Windows R&D control system
Monitor system CCD same axis monitor
Laser head Special laser head
Focus system High resolution laser sensor
Body Marble Body base
Electric Power 380v-3phase-5wires 50HZ
Power 6KW
Laser Power 3000W
Worktable 220*220*100mm(x*y*z)
A Axis rotation angle ±30°(can cut relief angle)
Repeating Position Accuracy ≦0.005mm(stepping system)
≦0.003mm(servo system)
Load ≦15KG
Max speed 600mm/min
Kerf Width ≦0.10mm





Applications:

This machine is mainly suitable for cutting ultra-hard materials(PCD/ PCBN/ hard alloy),also applicable to materials that cannot be processed by wire cutting.
