PCD CNC Fiber Laser Cutting Machine 600mm/min For Ultra Hard Material
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Laser Cutting | Applicable Material | Metal, Crystal, PCD/PCBN |
|---|---|---|---|
| Graphic Format Supported | AI, PLT, DXF, BMP, Dst, Dwg | Cutting Speed | 600mm/min |
| After-sale Service | Video Technical Support, Online Support, | Core Components | Motor, PLC |
| Condition | New | ||
| High Light | 600mm/min CNC Fiber Laser Cutting Machine,PCD CNC Fiber Laser Cutting Machine,PCD fiber laser cutter |
||
Product Description

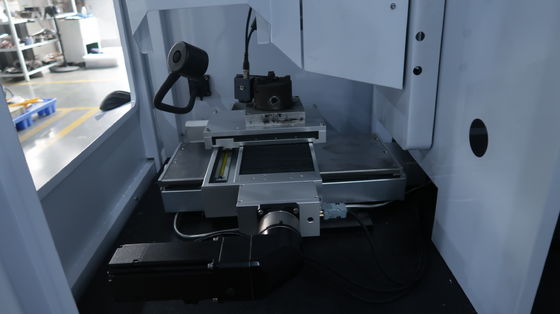

PCD Laser Cutting Machine ZT-JGQG6S/E For Hard Material 6kw
Quick Details
1. Adopt advanced fiber laser source modular
2. Very competitive price
3. Cutting width is :0.05-0.06mm
4. Special optical laser head, Stable laser source
5. Working 7*24 hours
Description:
Based on marketing and customized requirements, the economic fiber laser cutting machine launched. It replace by expensive fiber laser and past YAG laser. And widely used for PCD/ PCBN/ CVD/ Sapphire/ PDC/ND/MD/ Carbide/ Ceramic material high precision cutting.
X and Y axis adopt by imported with original packaging high quality and precision HIWIN linear guide rail, working table adopt by square pipe to welding the overall machine, stress relief annealing treat.
Specifications:
| Technology Parameters | |
| Laser Source | Fiber |
| Control system | X/Y/Z high precision worktable with rotary A axis |
| Software system | Based on Windows R&D control system |
| Monitor system | CCD same axis monitor |
| Laser head | Special laser head |
| Focus system | High resolution laser sensor |
| Body | Marble Body base |
| Electric Power | 380v-3phase-5wires 50HZ |
| Power | 6KW |
| Laser Power | 3000W |
| Worktable | 220*220*100mm(x*y*z) |
| A Axis rotation angle | ±30°(can cut relief angle) |
| Repeating Position Accuracy | ≦0.005mm(stepping system) |
| ≦0.003mm(servo system) | |
| Load | ≦15KG |
| Max speed | 600mm/min |
| Kerf Width | ≦0.10mm |
Applications:
This machine is mainly suitable for cutting ultra-hard materials(PCD/ PCBN/ hard alloy),also applicable to materials that cannot be processed by wire cutting.
