High Precision PCD Laser Cutting

Place of Origin China
Brand Name CTSTC
Certification N/A
Model Number N/A
Minimum Order Quantity 1pc
Price $1.00
Packaging Details Carton
Delivery Time 5-8days
Payment Terms L/C, D/P, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Laser Type Fiber Material PCD/PCBN
Cutting Equipment ZT-JGQG6SE Kerf Width Less Than 0.06mm
Edge Burn ≦0.02mm Shape Almost Any 2D Shape
High Light

High Precision PCD Laser Cutting


Ultra Hard PCD Laser Cutting


High Precision PCD Cutting

Leave a Message
Product Description

High Precision Ultra-Hard PCD&PCBN Tools Laser Cutting Pre-machining service.

Quick Details

1. Narrow kerf ≦0.06mm

2. High efficiency 600mm/min

3. Many years practice in laser cutting service

4. Very skilled technician team

5. Various 2D shape can be processed

6. Meet different requirements

7. Deep customization



Our company provide one step processing service for ultra-hard cutting tools, including laser cutting, carbide inserts notching, vacuum brazing, chip breaker processing and so on. Many years experience  in ultra-hard cutting tools industry, added with standard and accurate process procedure guard for the quality of our service.

With advanced machine equipment, skilled technician group and many years of practice, we can provide excellence service for the different complex requirements.

Cutting machine ZT-JGQG6SE
Laser Type Fiber
Material PCD/PCBN
Kerf Width ≦0.06mm
Edge burn ≦0.02mm
Shape Almost any 2D shape

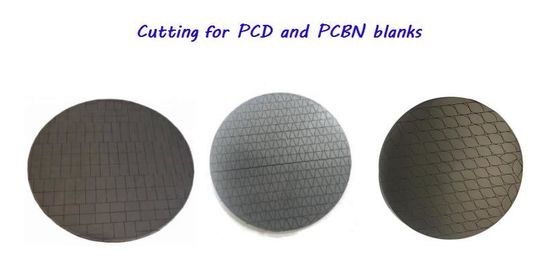

High Precision PCD Laser Cutting 0

Material SB95S2(Ijin PCBN)
Size 80°T 8.34*4.61mm
Thickness 1.6mm
Tolerances 0.05mm
Pieces/blank 121
Processing Speed 600mm/min




At 100 times enlarge microscope, you will see the part of PCD & PCBN
After cutting, there is no chip and cracks.

High Precision PCD Laser Cutting 1

1, Our designer will make the drawing for customers confirmation as per their requirements and materials:

Cutting time: 30mins to 4 hours, it’s depends on the thickness of material and the complexity of the design.
Cutting width: 0.05-0.06mm

High Precision PCD Laser Cutting 2


2, Once confirmed the draw, we will using the Laser cutting machine to cut:
* The laser cutting is suitable for PCD/PCBN blank and ceramics
* Precision cutting delivery with 3 days
* Large stock for different brand material

High Precision PCD Laser Cutting 3

3, QC inspection: All of the goods are finished by Laser cutting machine, our QC department will do inspection one by one, and send to our warehouse if the quality is good.


High Precision PCD Laser Cutting 4


Bubble film - Carton box - Wooden box
