680kgs Pdc Processing Machine / Fiber Laser Engraving Machine Germany Optical 2 Axis Control

Place of Origin CHINA
Brand Name CTSTC
Model Number ZT-JGDK200
Minimum Order Quantity 1
Packaging Details plywood box
Delivery Time 45-60 days
Payment Terms TT/LC/Western Union

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Net Weight 680kgs Focus Adjusting Range 0-30mm
Beam Full Divergence 1.5-2.0rad Motion Control Mechanical 2 Axis + Optical 2 Axis(Germany)+Z Axis(linkage)
Processing Quantity 64pcs Wave Length 1064nm
Laser Source Fiber Positioning Accuracy ≤0.01mm
High Light

680kgs Pdc Processing Machine


680kgs Fiber Laser Engraving Machine


2Axis Control Pdc Processing Machine

Leave a Message
Product Description

Product Description:

The Fiber Laser Engraving Machine is an advanced and highly efficient piece of equipment designed for precision marking and engraving applications. This robust machine is an essential tool for industries looking to streamline their processing operations while maintaining high-quality standards. With a considerable processing quantity of 64pcs, it can handle high-volume tasks with ease, making it an ideal choice for businesses that require consistent production output.

Boasting an output power of ≤100W, the Fiber Laser Engraving Machine is well-suited for a variety of materials and applications. This power level allows for deep engraving and high-speed marking, ensuring that each piece processed retains the highest clarity and detail. Whether you are marking metals, plastics, or other materials, the machine's precision is unmatched, offering crisp and clear results every time.

One of the standout features of this laser engraving machine is its advanced Location Mode. Equipped with a CCD Visual Location system that utilizes a German Orginal Camera, the machine provides unparalleled accuracy and alignment. This state-of-the-art technology ensures that every engraving is perfectly placed, reducing errors and waste, and improving overall efficiency. With this feature, users can trust that their designs and markings will be executed with the utmost precision.

The Fiber Laser Engraving Machine operates at a Wave Length of 1064nm, which is the standard for fiber lasers and is known for its exceptional material absorption rates. This wavelength ensures optimal energy utilization and is particularly effective for engraving a wide range of materials, including those used in the manufacturing of PDC cutters. The 1064nm wavelength also contributes to the machine's ability to provide permanent, non-contact, and abrasion-resistant markings, which is crucial for maintaining the integrity of the parts being engraved.

With an Overall Rated Power of 2.5kW, this laser engraving machine is designed for continuous operation without compromising on performance. This level of power rating allows for a seamless integration into production lines, supporting around-the-clock manufacturing processes with minimal downtime. It is an energy-efficient solution that reduces operational costs while delivering high throughput and reliability.

The Fiber Laser Engraving Machine is not only a powerful tool for processing PDC cutters but is also versatile enough to cater to a variety of other industrial applications. Its ability to produce fine details and complex patterns makes it a preferred choice for sectors that demand accuracy, such as the jewelry, electronics, medical device, and automotive industries. The machine's user-friendly interface and minimal maintenance requirements further enhance its appeal, making it accessible to operators with varying levels of expertise.

In summary, this laser engraving machine is a technologically advanced solution that offers precision, efficiency, and versatility. Its features, such as the CCD Visual Location system with a German Orginal Camera, reliable output power of ≤100W, and a processing wavelength of 1064nm make it a top-of-the-line choice for businesses seeking to improve their engraving processes. With an impressive processing quantity capability and an overall rated power of 2.5kW, this machine stands out as a robust and dependable asset for any company aiming to excel in their production endeavors.

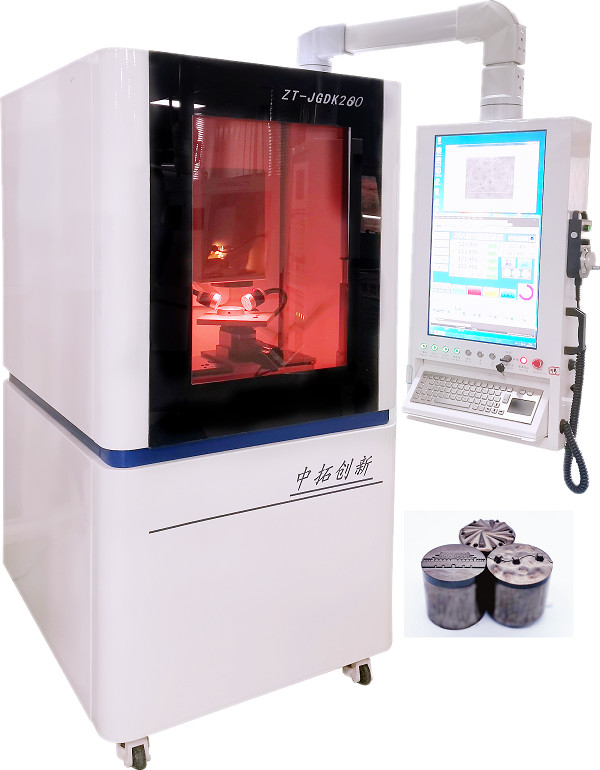

680kgs Pdc Processing Machine / Fiber Laser Engraving Machine Germany Optical 2 Axis Control 0


The CTSTC ZT-JGDK200 Fiber Laser Engraving Machine, originating from CHINA, is a premier choice for various product application occasions and scenarios. The machine boasts a robust design with dimensions of 1280*950*1900 (L*W*H), making it suitable for industrial environments where precision and reliability are paramount. As a cbn engraving machine, it is highly sought after for its efficiency and the quality of its engravings.

With a frequency range of 10-100kHz and a focus adjusting range of 0-30mm, the CTSTC ZT-JGDK200 is versatile and can be adjusted to meet the unique requirements of each engraving task. It is controlled via software extrocontrol, allowing for precise and intricate designs to be etched onto various materials. The machine's overall rated power of 2.5kW ensures that it can handle continuous operations without compromising on performance.

One of the primary application scenarios for the CTSTC ZT-JGDK200 is the engraving of PDC (Polycrystalline Diamond Compact) tools. PDC tools engraving requires a machine that can deliver high precision to maintain the integrity of the tools' cutting edges. The fiber laser technology employed by the CTSTC ZT-JGDK200 makes it an ideal PDC tools engraving machine, ensuring that each engraving is done with the utmost accuracy and quality.

The Minimum Order Quantity for this machine is one unit, and it is carefully packaged in a plywood box to ensure its safety during transportation. The Delivery Time is set between 45-60 days, allowing for thorough preparation and quality checks before the machine reaches the customer. Payment Terms are flexible, with options such as TT, LC, and Western Union available, catering to a broad range of customers and their financial preferences.

Whether it's for industrial marking, automotive parts identification, or intricate design engraving, the CTSTC ZT-JGDK200 Fiber Laser Engraving Machine is capable of handling a variety of materials with precision. Its application is not limited to PDC tools engraving but extends to other industries requiring a reliable cbn engraving machine. This versatility, combined with its sturdy construction and top-notch performance, makes the CTSTC ZT-JGDK200 an invaluable asset for businesses looking to enhance their engraving capabilities.


Brand Name: CTSTC

Model Number: ZT-JGDK200

Place of Origin: CHINA

Minimum Order Quantity: 1

Packaging Details: plywood box

Delivery Time: 45-60 days

Payment Terms: TT/LC/Western Union

Positioning Accuracy: ≤0.01mm

Remove Efficiency: 0.005mm/layer

Consumable: Non

Table Travel: 200*200*60mm

Focus Adjusting Range: 0-30mm

Our CTSTC ZT-JGDK200 Fiber Laser Engraving Machine is a top-of-the-line solution for those seeking precision engraving on a variety of materials. This cbn engraving machine offers high-quality performance and is ideal for those in the market for a reliable pcd engraving machine . Manufactured in CHINA and requiring no consumables, this unit is designed for efficient operation and is perfect for detailed work where accuracy and remove efficiency are paramount.

680kgs Pdc Processing Machine / Fiber Laser Engraving Machine Germany Optical 2 Axis Control 1

Support and Services:

The Fiber Laser Engraving Machine offers comprehensive technical support and services to ensure that our customers are able to utilize the product to its fullest potential. Our support includes troubleshooting for operational issues, guidance on machine maintenance, and advice on optimal usage practices to ensure high-quality engraving results.

Our services cover software updates and upgrades to keep your machine running with the latest features and improvements. We also provide detailed documentation and user manuals that offer step-by-step instructions on machine operation and safety measures.

In the event of a technical malfunction or if you require assistance with machine calibration, our team of experts is ready to provide you with remote support to diagnose and resolve the issue. We are committed to delivering prompt responses to your inquiries to minimize any downtime and ensure your operations continue smoothly.

Additionally, we offer training sessions for individuals and teams to enhance their understanding of the machine's capabilities and to ensure they are equipped with the knowledge to use the machine efficiently and safely.

Our goal is to provide exceptional service and support to all customers, ensuring that your Fiber Laser Engraving Machine performs reliably and continues to meet your engraving needs effectively. We strive for continuous improvement in our support services to deliver the best customer experience possible.

680kgs Pdc Processing Machine / Fiber Laser Engraving Machine Germany Optical 2 Axis Control 2

Packing and Shipping:

The Fiber Laser Engraving Machine is meticulously packaged to ensure its safe arrival at your facility. The product is encased in a high-density foam that is custom-shaped to snugly fit the machine and its components, providing maximum protection against impact and vibration during transit. The foam is then placed inside a sturdy, corrugated cardboard box designed to withstand the rigors of shipping.

For added security, the cardboard box is sealed with heavy-duty packing tape and strapped with durable bands to reinforce its structural integrity. The exterior of the package is clearly labeled with handling instructions and fragile warnings to ensure that the carrier handles your machine with the care it deserves.

Prior to dispatch, the packaged Fiber Laser Engraving Machine is placed on a wooden pallet, providing a stable base that facilitates safe handling by forklifts and pallet jacks. The entire pallet is then shrink-wrapped to protect against moisture and dust, preserving the integrity of the packaging during shipment.

We ship our Fiber Laser Engraving Machines using reputable logistics providers who specialize in the transport of high-value, sensitive equipment. Each package is tracked with a unique tracking number, allowing you to monitor your shipment's progress until it safely reaches your destination. Upon arrival, please inspect the package for any signs of damage before signing the delivery receipt. If any damage is detected, report it immediately to the carrier and contact our customer service team for support.



Q1: What is the brand name and model number of the Fiber Laser Engraving Machine?

A1: The brand name of the Fiber Laser Engraving Machine is CTSTC, and the model number is ZT-JGDK200.

Q2: Where is the CTSTC ZT-JGDK200 Fiber Laser Engraving Machine manufactured?

A2: The CTSTC ZT-JGDK200 Fiber Laser Engraving Machine is manufactured in CHINA.

Q3: What is the minimum order quantity for the CTSTC ZT-JGDK200 Fiber Laser Engraving Machine?

A3: The minimum order quantity for the CTSTC ZT-JGDK200 Fiber Laser Engraving Machine is 1 unit.

Q4: How is the CTSTC ZT-JGDK200 Fiber Laser Engraving Machine packaged for delivery?

A4: The CTSTC ZT-JGDK200 Fiber Laser Engraving Machine is packaged in a plywood box to ensure its safety during transportation.

Q5: What is the delivery time and payment terms for purchasing the CTSTC ZT-JGDK200 Fiber Laser Engraving Machine?

A5: The delivery time for the CTSTC ZT-JGDK200 Fiber Laser Engraving Machine is typically 45-60 days. Payment terms include TT (Telegraphic Transfer), LC (Letter of Credit), and Western Union.
